Tow Cable-If Equipped
IMPORTANT:
Correctly use tow cable by pulling from front of tractor in a straight forward direction. Failure to do so could result in damage tractor or frame.
Do not use tow cable to hook tractors in tandem to pull a draft load.
Pulling a tractor with loaded equipment can cause excessive strain on drawbar support and is greatly increased by speed and rough ground conditions.
Inspect tow cable and/or drawbar pin for wear and replace when necessary.

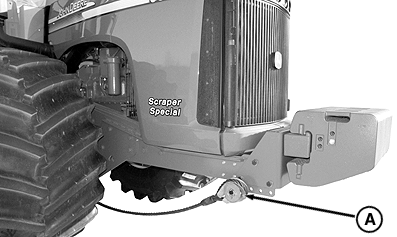

Use tow cable (A) to pull tractor or tractor with scraper from soft or wet soil conditions.
When using a dealer installed tow cable, pull from front of tractor in a straight forward direction.
A-Tow Cable
B-Tow Cable Drawbar Support
|

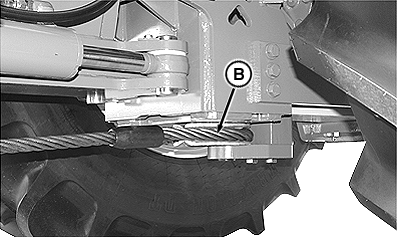

Tow Cable Drawbar Support-Without AutoLoad

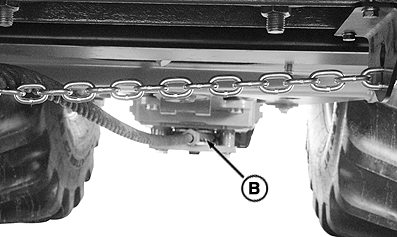

Tow Cable Drawbar Support-With AutoLoad
|
