Using Draft Control

Use draft control to help maintain operating depth of non-floating tillage equipment in rolling terrain, or if tractor attitude/pitch and rear wheel sinkage force implement deeper than desired. If soil density/resistance varies, higher response setting will cause more depth variation. The best setting depends on implement type and field conditions.

Typical draft settings, by implement type, are:

Integral Field Cultivator 4-5
Integral Moldboard Plow 3-5
Semi-Integral Moldboard Plow 2-4
Integral Chisel Plow 2-4
Integral Ripper/Subsoiler 1-3



Adjusting load/depth only changes draft responsiveness. Use hitch lever to control/change operating depth.

NOTE: Low draft response settings may slow the drop rate of some implements. Hold lever in forward detent to speed entry. Hitch will lower at the drop rate selected.

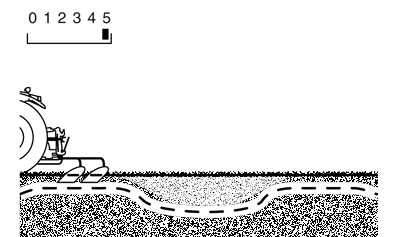

RXA0093493

High Response Causes More Depth Variation If Soil Varies

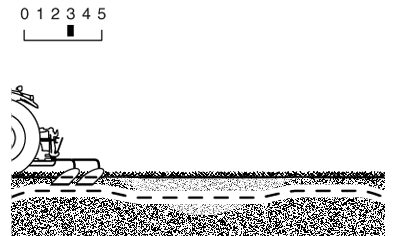

RXA0093494

Lower Response Controls Depth Better If Soil Varies

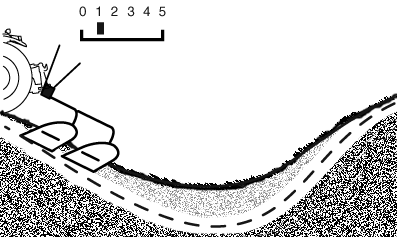

RXA0093495

Lower Response Causes More Depth Variation In Rolling Terrain

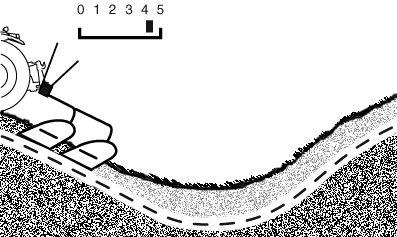

RXA0093496

Higher Response Controls Depth Better In Rolling Terrain
