Clean And Repack Front Wheel Bearings-Two Wheel Drive

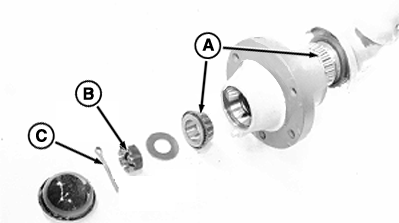

On adjustable front-axle-equipped tractors, disassemble and clean parts in solvent. Pack bearings (A) with grease. Reassemble and tighten nut (B) until slight drag is felt when wheel is turned. Back nut off to insert cotter pin (C) in first hole.

Use extreme pressure grease specified in Fuels, Lubricants, and Coolant Section.

A-Plug

OURX935,0000089 -19-02JAN08-1/1
