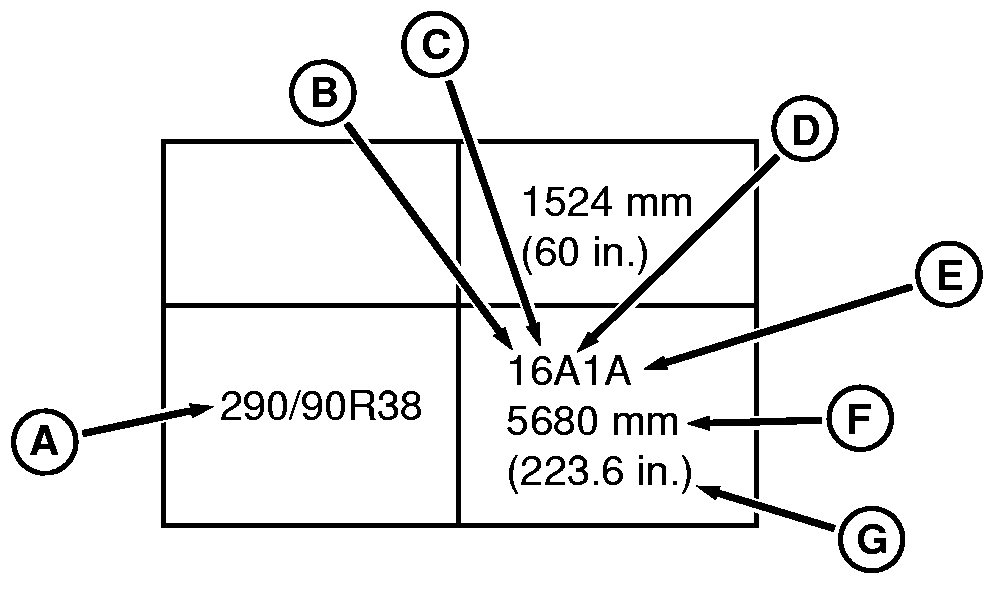

MFWD and Independent Link Suspension Front Tire, Fender and Steering Stop SettingsNOTE: This is an explanation of the tables in the next several pages. The first row across the top of the page lists tread spacing in millimeters and inches. Column one lists the tire size (A). The first number (B) in column two identifies either an eight or sixteen position rim is used. The first letter (C) indicates which example to follow from either Eight Position Wheel Settings or Sixteen Position Wheel Settings. The next number (D) is the correct steering stop position. The last letter (E) is the fender setting, which is taken from either 1300 MFWD Axle Fender Settings or Independent Link Suspension Fender Settings. If a small "w" is attached after the letter used for the fender setting, it would indicate the setting listed is for wide fenders. The last two entries (F) and (G) indicates turning radius in millimeters and inches respectively. |
|
OURX935,00000B3 -19-11APR08-1/6 |
|
NOTE: Parts are available from your John Deere Dealer to make 1676 mm (66 in.) row spacing setting. |
| 1300 MFWD Axle Front Tire, Fender and Steering Stop Settings | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | 1524 mm (60 in.) |
1626 mm (64 in.) |
1676 mm (66 in.) |
1727 mm (68 in.) |
1780 mm (70 in.) |
1829 mm (72 in.) |
1882 mm (74.1 in.) |
||||
| 16.9R30 R1-R1W-R2 |
8A2A 5680 mm (223.6 in.) |
8B1B 5750 mm (226.4 in.) |
8B1C 5780 mm (227.6 in.) |
8C0C 5470 mm (215.4 in.) |
N/A | 8D0D 5320 mm (209.4 in.) |
N/A | ||||
| 290/90R38 | 16A1A 5680 mm (223.6 in.) |
16D0B 5750 mm (226.4 in.) |
N/A | 16E0C 5470 mm (215.4 in.) |
N/A | 16H0D 5320 mm (209.4 in.) |
N/A | ||||
| 320/80/R42 | 16A3A 5990 mm (235.8 in) |
16D3B 6250 mm (246.1 in.) |
N/A | 16E2C 5840 mm (229.9 in.) |
N/A | 16H1D 5550 mm (218.5 in.) |
N/A | ||||
| 320/85R38 (R1W) | 16A1A 5680 mm (223.6 in.) |
16D0B 5750 mm (226.4 in.) |
N/A | 16E0C 5470 mm (215.4 in.) |
N/A | 16H0D 5320 mm (209.4 in.) |
N/A | ||||
| 380/80R38 | 16A3A 5990 mm (235.8 in) |
16D2B 6250 mm (246.1 in.) |
N/A | 16E1C 5840 mm (229.9 in.) |
N/A | 16H1D 5550 mm (218.5 in.) |
N/A | ||||
| 380/85R34 | 8A2A 5680 mm (223.6 in.) |
8B1B 5750 mm (226.4 in.) |
8B0C 5780 mm (227.6 in.) |
8C0C 5470 mm (215.4 in.) |
N/A | 8D0D 5320 mm (209.4 in.) |
N/A | ||||
| 420/85R34 | 8A3A 5990 mm (235.8 in.) |
8B3B 6250 mm (246.1 in.) |
8B2C 6110 mm (240.6 in.) |
8C2C 5840 mm (229.9 in.) |
N/A | 8D1D 5550 mm (218.5 in.) |
N/A | ||||
| 420/90R30 | 8A2A 5680 mm (223.6 in.) |
8B1B 5750 mm (226.4 in.) |
8B1C 5780 mm (227.6 in.) |
8C0C 5470 mm (215.4 in.) |
N/A | 8D0D 5320 mm (209.4 in.) |
N/A | ||||
| 480/70R30 | 8A2A 5680 mm (223.6 in.) |
8B1B 5750 mm (226.4 in.) |
8B1C 5780 mm (227.6 in.) |
8C0C 5470 mm (215.4 in.) |
N/A | 8D0D 5320 mm (209.4 in.) |
N/A | ||||
| 480/70R34 | 8A3A 5990 mm (235.8 in.) |
8B3B 6250 mm (246.1 in.) |
8B2C 6110 mm (240.6 in.) |
8C2C 5840 mm (229.9 in.) |
N/A | 8D1D 5550 mm (218.4 in.) |
N/A | ||||
| 540/65R34 | N/A | N/A | 8B2Aw 6500 mm (255.9 in.) |
N/A | 8C1Bw 6090 mm (239.8 in.) |
N/A | 8D0Cw 5770 mm (227.2 in.) |
||||
| 600/65R28 | N/A | N/A | N/A | N/A | 8K1Bw 6630 mm (261 in.) |
N/A | 8L0Cw 6690 mm (263.4 in.) |
||||
| 600/70R30 | N/A | N/A | N/A | N/A | 8K2Bw 6500 mm (255.9 in.) |
N/A | 8L1Cw 6100 mm (240.2 in.) |
||||
OURX935,00000B3 -19-11APR08-2/6 |
| 1300 MFWD Axle Front Tire, Fender and Steering Stop Settings | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | 1930 mm (76 in.) |
1979 mm (78 in.) |
2032 mm (80 in.) |
2080 mm (82 in.) |
2134 mm (84 in.) |
2182 mm (86 in.) |
2235 mm (88 in.) |
||||
| 16.9R30 (R1-R1W-R2) | 8E0E 5350 mm (210.6 in.) |
N/A | 8F0F 5410 mm (213 in.) |
N/A | 8G0G 5440 mm (214.2 in.) |
N/A | 8H0H 5510 mm (216.9 in.) |
||||
| 290/90R38 | 16I0E 5350 mm (210.6 in.) |
N/A | 16L0F 5410 mm (213 in.) |
N/A | 16M0G 5440 mm (214.2 in.) |
N/A | 16P0H 5510 mm (216.9 in.) |
||||
| 320/80R42 | 16I0E 5360 mm (211.1 in.) |
N/A | 16L0F 5420 mm (213.4 in.) |
N/A | 16M0G 5450 mm (214.6 in.) |
N/A | 16P0H 5552 mm (218.6 in.) |
||||
| 320/85R38 (R1W) | 16I0E 5350 mm (210.6 in.) |
N/A | 16L0F 5410 mm (213 in.) |
N/A | 16M0G 5440 mm (214.2 in.) |
N/A | 16P0H 5510 mm (216.9 in.) |
||||
| 380/80R38 | 16I0E 5360 mm (211.1 in.) |
N/A | 16L0F 5420 mm (213.4 in.) |
N/A | 16M0G 5450 mm (214.6 in.) |
N/A | 16P0H 5520 mm (217.3 in.) |
||||
| 380/85R34 | 8E0E 5350 mm (210.6 in.) |
N/A | 8F0F 5410 mm (213 in.) |
N/A | 8G0G 5440 mm (214.2 in.) |
N/A | 8H0H 5510 mm (216.9 in.) |
||||
| 420/85R34 | 8E0E 5360 mm (211.1 in.) |
N/A | 8F0F 5420 mm (213.4 in.) |
N/A | 8G0G 5450 mm (214.6 in.) |
N/A | 8H0H 5520 mm (217.3 in.) |
||||
| 420/90R30 | 8E0E 5350 mm (210.6 in.) |
N/A | 8F0F 5410 mm (213 in.) |
N/A | 8G0G 5440 mm (214.2 in.) |
N/A | 8H0H 5510 mm (216.9 in.) |
||||
| 480/70R30 | 8E0E 5350 mm (210.6 in.) |
N/A | 8F0F 5410 mm (213 in.) |
N/A | 8G0G 5440 mm (214.2 in.) |
N/A | 8H0H 5510 mm (216.9 in.) |
||||
| 480/70R34 | 8E0E 5360 mm (211.1 in.) |
N/A | 8F0F 5420 mm (213.4 in.) |
N/A | 8G0G 5450 mm (214.6 in.) |
N/A | 8H0H 5520 mm (217.3 in.) |
||||
| 540/65R34 | N/A | 8F0Dw 5460 mm (215 in.) |
N/A | 8G0Ew 5510 mm (216.9 in.) |
N/A | 8H0Fw 5560 mm (218.9 in.) |
N/A | ||||
| 600/65R28 | N/A | 8N0Dw 6250 mm (246.1 in.) |
N/A | 8O0Ew 6020 mm (237 in.) |
N/A | 8P0Fw 5720 mm (225.2 in.) |
N/A | ||||
| 600/70R30 | N/A | 8N1Dw 5770 mm (227.2 in.) |
N/A | 8O0Ew 5820 mm (229.1 in.) |
N/A | 8P0Fw 5860 mm (230.7 in.) |
N/A | ||||
OURX935,00000B3 -19-11APR08-3/6 |
| 1500 MFWD Front Axle, Tire, Fender and Steering Stop Settings | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | 1524 mm (60 in.) |
1626 mm (64 in.) |
1676 mm (66 in.) |
1727 mm (68 in.) |
1780 mm (70 in.) |
1829 mm (72 in.) |
1882 mm (74.1 in.) |
||||
| 380/80R38 | 16A3A 6370 mm (250.8 in.) |
16D2B 5950 mm (234.3 in) |
N/A | 16E1C 5640 mm (222 in.) |
N/A | 16HID 5690 mm (224 in.) |
N/A | ||||
| 420/85R34 | N/A | 8B3B 6420 mm (252.8 in.) |
8B3C 6500 mm (255.9 in.) |
8C2C 6010 mm (236.6 in.) |
N/A | 8D1D 6060 mm (238.6 in.) |
N/A | ||||
| 480/70R34 | N/A | 8B3B 6420 mm (252.8 in.) |
8B3C 6500 mm (255.9 in.) |
8C2C 6010 mm (236.6 in.) |
N/A | 8D2D 6060 mm (238.6 in.) |
N/A | ||||
| 540/65R34 | N/A | N/A | 8B3Aw 6500 mm (255.9 in.) |
N/A | 8C2Bw 6090 mm (239.8 in.) |
N/A | 8D1Cw 5770 mm (227.2 in.) |
||||
| 540/75R34 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | ||||
| 600/70R30 | N/A | N/A | N/A | N/A | N/A | N/A | 8M3CW 6100 mm (240.1 in.) |
||||
| 620/75R30 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | ||||
| 1500 Front MFWD Axle, Tire, Fender and Steering Stop Settings | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | 1930 mm (76 in.) |
1979 mm (78 in.) |
2032 mm (80 in.) |
2080 mm (82 in.) |
2134 mm (84 in.) |
2182 mm (86 in.) |
2235 mm (88 in.) |
||||
| 380/80R38 | 16I1E 5720 mm (225.1 in.) |
N/A | 16L1F 5720 mm (225.1 in.)a |
N/A | 16M1G 5720 mm (225.1 in.)a |
N/A | 16P0H 5520 mm (217.3 in.)a |
||||
| 420/85R34 | 8E1E 5720 mm (225.1 in.) |
N/A | 8F0F 5720 mm (225.1 in.)a |
N/A | 8G0G 5720 mm (225.1 in.)a |
N/A | 8H0H 5520 mm (217.3 in.)a |
||||
| 480/70R34 | 8E1E 5370 mm (211.4 in.) |
N/A | 8F0F 5410 mm (213 in.)a |
N/A | 8G0G 5470 mm (215.4 in.)a |
N/A | 8H0H 5520 mm (217.3 in.)a |
||||
| 540/65R34 | N/A | 8F0Dw 5460 mm (215 in.)a |
N/A | 8G0Ew 5510 mm (216.9 in.)a |
N/A | 8H0Fw 5560 mm (218.9 in.)a |
N/A | ||||
| 540/75R34 | N/A | N/A | N/A | 8G3Ew 6670 262.6 in.)a |
N/A | 2H2Fw 6260 (246.5 in.)a |
N/A | ||||
| 600/70R30 | N/A | 8N1Dw 5770 mm (227.2 in.)a |
N/A | 801Ew 5820 mm (219.7 in.)a |
N/A | 8P1F 5860 mm (290.7 in.)a |
N/A | ||||
| 620/75R30 | N/A | N/A | N/A | N/A | N/A | 8P3Fw 6700 mm (263.8 in.) |
N/A | ||||
| aTool Box must be removed from the side of the transmission. | |||||||||||
OURX935,00000B3 -19-11APR08-4/6 |
| Independent Link Suspension Front Tire, Fender and Steering Stop Settings | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | 1524 mm (60 in.) |
1626 mm (64 in.) |
1676 mm (66 in.) |
1727 mm (68 in.) |
1780 mm (70 in.) |
1829 mm (72 in.) |
1882 mm (74.1 in.) |
||||
| 290/90R38 | 16A1A 5510 mm (216.9 in.) |
16D0B 5230 mm (205.9 in.) |
N/A | 16E0C 5260 mm (207.1 in. ) |
N/A | 16H0D 5320 mm (209.4 in.) |
N/A | ||||
| 320/85R38 (R1W) | 16A2A 5880 mm (231.5 in.) |
16D1B 5570 mm (219.3 in.) |
N/A | 16E0C 5260 mm (207.1 in.) |
N/A | 16H0D 5320 mm (209.4 in.) |
N/A | ||||
| 380/80R38 | 16A3A 6370 mm (250.8 in.) |
16D2B 5950 mm (234.3 in.) |
N/A | 16E1C 5640 mm (222 in.) |
N/A | 16H1D 5690 mm (224 in.) |
N/A | ||||
| 380/85R34 | 8A3A 5880 mm (231.5 in.) |
8B2B 5930 mm (233.5 in.) |
8B1C 5980 mm (235.4 in.) |
8C0C 5620 mm (221.3 in.) |
N/A | 8D0D 5320 mm (209.4 in.) |
N/A | ||||
| 420/85R34 | 8A3A 6370 mm (250.8 in.) |
8B3B 6420 mm (252.8 in.) |
8B2C 6500 mm (255.9 in.) |
8C1C 6010 mm (236.6 in.) |
N/A | 8D1D 6060 mm (238.6 in.) |
N/A | ||||
| 480/70R30 | N/A | 8B2B 5930 mm (233.5 in.) |
8B1C 5980 mm (235.4 in.) |
8C0C 5620 mm (221.3 in.) |
N/A | 8D0D 5320 mm (209.4 in.) |
N/A | ||||
| 540/65R34 | N/A | N/A | 8B3Aw 6500 mm (255.9 in.) |
N/A | 8C2Bw 6090 mm (239.8 in.) |
N/A | 8D1Cw 5770 mm (227.2 in.) |
||||
| 540/75R34 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | ||||
| 600/65R28 | N/A | N/A | N/A | N/A | 8K2Bw 6040 mm (237.8 in.) |
N/A | 8L1Cw 5720 mm (225.2 in.) |
||||
| 600/70R30 | N/A | N/A | N/A | N/A | 8K3Bw 6500 mm (255.9 in.) |
N/A | 8L2Cw 6100 mm (240.2 in.) |
||||
| 620/75R30 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | ||||
OURX935,00000B3 -19-11APR08-5/6 |
| Independent Link Suspension Front Tire, Fender and Steering Stop Settings | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | 1930 mm (76 in.) |
1979 mm (78 in.) |
2032 mm (80 in.) |
2080 mm (82 in.) |
2134 mm (84 in.) |
2182 mm (86 in.) |
2235 mm (88 in.) |
||||
| 290/90R38 | 16I0E 5370 mm (211.4 in.) |
N/A | 16L0F * 5410 mm (213 in.) |
N/A | 16M0G * 5470 mm (215.4 in.) |
N/A | 16P0H * 5520 mm (217.3 in.) |
||||
| 320/85R38 (R1W) | 16I0E 5370 mm (211.4 in.) |
N/A | 16L0F * 5410 mm (213 in.) |
N/A | 16M0G * 5470 mm (215.4 in.) |
N/A | 16P0H * 5520 mm (217.3 in.) |
||||
| 380/80R38 | 16I1E 5720 mm (225.2 in.) |
N/A | 16L1F * 5720 mm (225.2 in.) |
N/A | 16M1G * 5720 mm (225.2 in.) |
N/A | 16P0H * 5520 mm (217.3 in.) |
||||
| 380/85R34 | 8E0E 5370 mm (211.4 in.) |
N/A | 8F0F * 5410 mm (213 in.) |
N/A | 8G0G * 5470 mm (215.4 in.) |
N/A | 8H0H * 5520 mm (217.3 in.) |
||||
| 420/85R34 | 8E1E 5720 mm (225.2 in.) |
N/A | 8F1F * 5720 mm (225.2 in.) |
N/A | 8G1G * 5720 mm (225.2 in.) |
N/A | 8H0H * 5520 mm (217.3 in.) |
||||
| 480/70R34 | 8E1E 5370 mm (211.4 in.) |
N/A | 8F0F * 5410 mm (213 in.) |
N/A | 8G0G * 5470 mm (215.4 in.) |
N/A | 8H0H * 5520 mm (217.3 in.) |
||||
| 540/65R34 | N/A | 8F0Dw 5460 mm (215 in.) |
N/A | 8G0Ew 5510 mm (216.9 in.) |
N/A | 8H0F * 5560 mm (218.9 in.) |
N/A | ||||
| 540/75R34 | N/A | 8F3Dw* 6670 mm (262.6 in.) |
N/A | 8G3Ew* 6670 mm (262.6 in.) |
N/A | 8H2Fw* 6260 mm (245.5 in.) |
N/A | ||||
| 600/65R28 | N/A | 8N0Dw 5770 mm (227.2 in.) |
N/A | 8O0Ew 5480 mm (215.7 in.) |
N/A | 8P0F * 5510 mm (216.9 in.) |
N/A | ||||
| 600/70R30 | N/A | 8N1Dw 5770 mm (227.2 in.) |
N/A | 8O1Ew 5820 mm (229.1 in.) |
N/A | 8P1F * 5860 mm (230.7 in.) |
N/A | ||||
| 620/75R30 | N/A | N/A | N/A | 803Ew* 6670 mm 262.6 in.) |
N/A | 8P2Fw* 6700 mm (263.8 in.) |
N/A | ||||
|
* Tool Box must be removed from the side of the transmission. |
