Setting Startup Gear

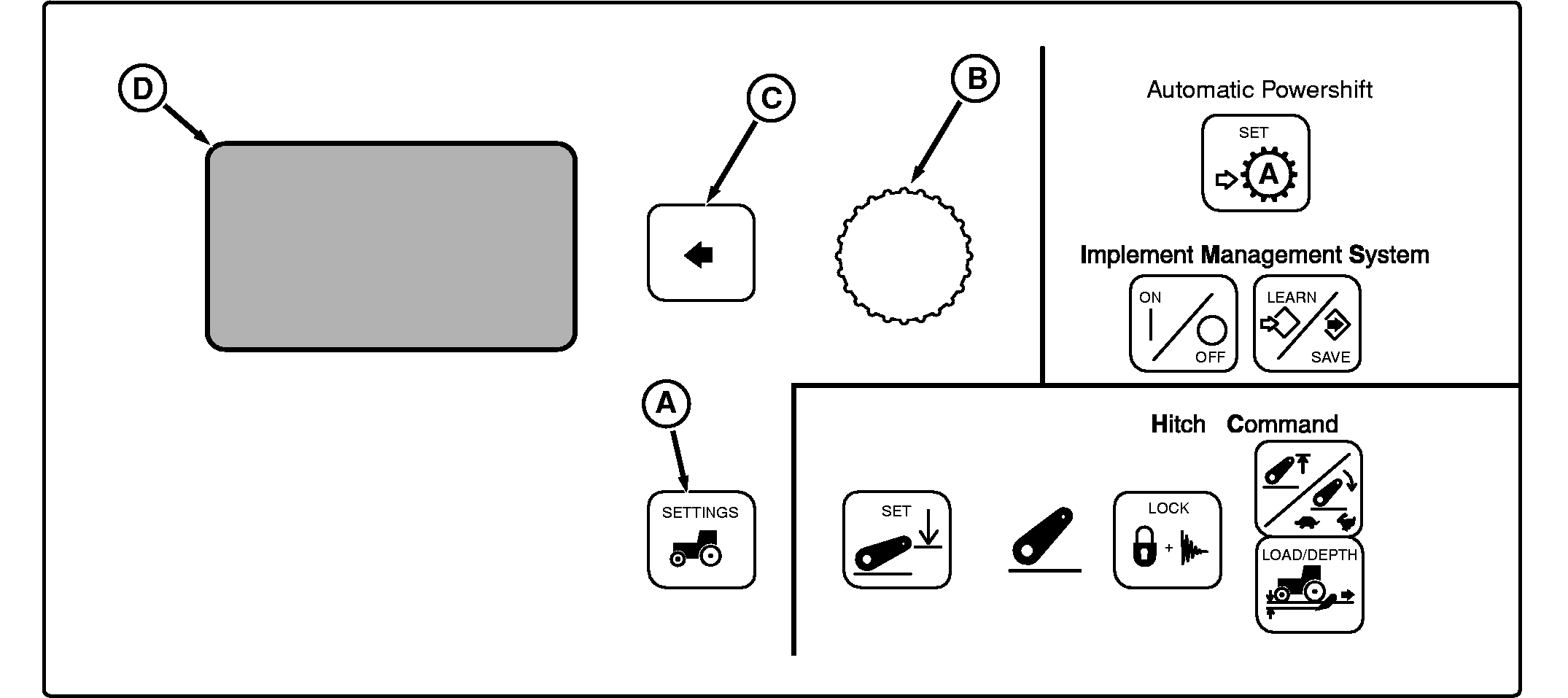

RXA0082660

CommandCenter


A-Vehicle Settings Switch


B-Command Dial


C-Select Switch


D-Display

Legend for Display

English Translation (if applies) Implement Sel Implement Sel RPTO Engage RPTO Engage Transmission Transmission Hitch Slip Response Hitch Slip Response Auto Shift Auto Shift Fwd Start Gear Fwd Start Gear Rev Start Gear Rev Start Gear Back Back



1. Press Setting Switch (A).

Display will be:
Implement Sel
RPTO Engage
Transmission
Hitch Slip Response



2. Using Command Dial (B), scroll down to Transmission , then press Select Switch (C).

Display will be:
Auto Shift
Fwd Start Gear
Rev Start Gear
Back



3. To change forward start gear using Command Dial, scroll down to Fwd Start Gear and press Select Switch. Rotate Command Dial clockwise to increase the gear displayed or counterclockwise to decrease the gear displayed.

To change reverse start gear using Command Dial, scroll down to REV Start Gear and press select switch. Rotate Command Dial clockwise to increase the gear displayed or counterclockwise to decrease the gear displayed.

4. A number will be displayed. Rotate Command Dial clockwise to increase the gear (number) displayed or counterclockwise to decrease the gear (number) displayed.

OURX935,00001FC -19-02JAN08-1/2

5. When the desired number for the gear is displayed, press Select Switch.

NOTE: New startup gear will not be locked into system memory until engine is turned Off, then restart tractor.

6. Turn Key switch OFF, after engine is shut off, restart engine.

OURX935,00001FC -19-02JAN08-2/2
