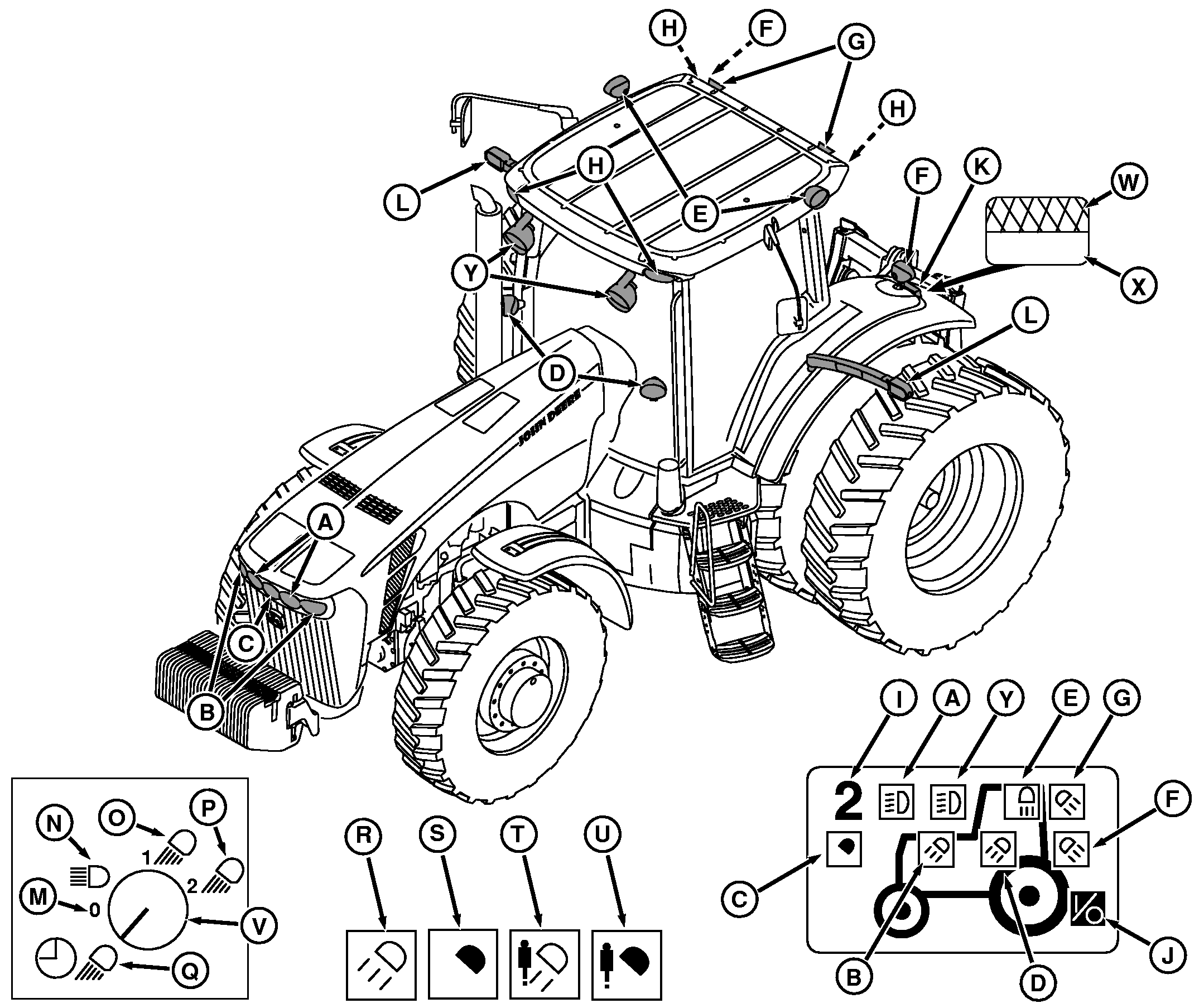

A-Road Lights, Front Inner, High/Low Beam
B-Field Lights, Front Outer (Standard or HID-Xenon)
C-Center Spot Light (HID Only) (Optional)
D-Field Lights, Cab Beltline
E-Field Lights, Cab Roof Side (If Equipped)
F-Field Lights, Fender Rear (Standard or HID-Xenon)

G-Field Lights, Cab Roof Rear
H-Amber Hazard Lights, Front and Rear Roof
I-Indicator, Field Light Position
J-Programmable Indicator, ON/OFF
K-Red Tail Lights (Early Model Tractors)
L-Extremity Transport Lights

M-Light Switch, OFF Position
N-Road Light Position Indicator
O-Field Position 1
P-Field Position 2
Q-Delayed Shutdown Position (If Equipped)
R-Light Programmed ON
S-Light Programmed Off
T-Light Programmed On, Faulted

U-Light Programmed Off, Faulted
V-Light Switch
W-Amber Hazard Light (Late Model Tractors)
X-Red Tail Light (Late Model Tractors)
Y-Field Lights, Front Cab (Late Model Tractors)

OURX935,00003DA -19-04AUG06-1/2

CAUTION: Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim headlights to low-beam for oncoming vehicles. Avoid using Field Lights which could blind or confuse other drivers.

Standard Light Switch has four positions (M-P) and operates regardless of key position. With optional Egress lighting, switch has five positions; the same four as standard switch, plus delayed shut-down position (Q).

0 (OFF) Position (M):

Turns all lights off.

NOTE: Refer to Programming Field Lights for lighting set-up information. Programmable lighting display is at the lower right-hand corner of the previous picture. Programmable lights are A through G and Programmable lighting status is displayed as shown in R - U.

Programmable Lights (A - G)

As shown, lights are ON (R), OFF (S), ON-Faulted (T) or OFF-Faulted (U). See Programming Field Lights for operating information.

Road Position (N):

Turns on high/low beam Road Lights (A), red tail lights (K), flashing front and rear roof hazard lights (H) and extremity transport lights (L).

Field Positions 1 (O) and 2 (P):

Turns on clear-lens lighting (A, B, D, E and F) programmed for each Field position.

Automatic Battery Protection Feature

To prevent battery discharge if headlights or field lights are left on accidentally after shutting off engine. Electrical system will automatically start the following sequence:

• After 30 minutes have elapsed, lights will turn on and off 5 times
• After 5th time, lights will turn back on and stay lit for about 60 seconds
• After 60 seconds, lights will go off and stay off to prevent complete battery discharge

Using Delayed Egress Lighting (If Equipped)

Turn light switch (V) to activate Egress Lighting (Delayed Shutdown) position (Q) and observe CommandCenter display.

Programming Egress lighting is the same as Field lighting with all clear-lens lights selectable. Only operator selected clear-lens lights will come ON when Light Switch is moved to egress lighting. Moving the dimmer switch to high beam will allow for egress lighting to be programmed for a second option.

Cancel egress lighting by momentarily turning switch clockwise to Road position and then OFF.

Programmed lighting will remain ON for 90 seconds, then shut off automatically. Each additional time switch is turned counterclockwise adds 30 seconds to time the lights remain ON up to 3 minutes maximum.

OURX935,00003DA -19-04AUG06-2/2
