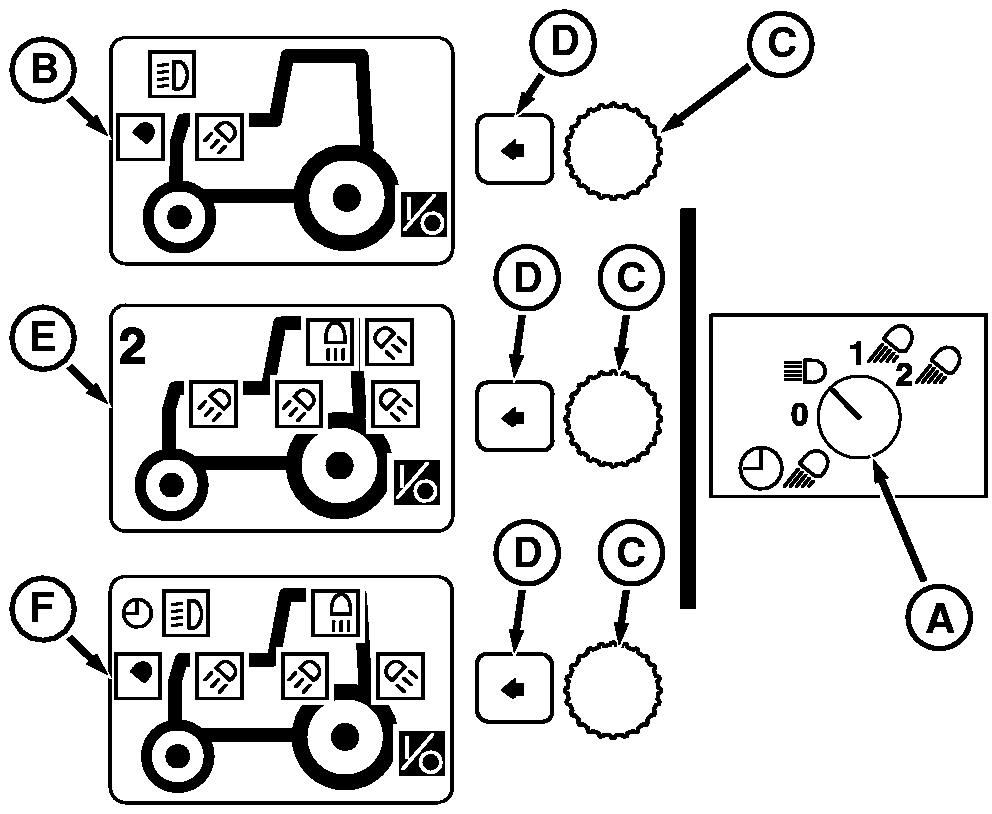

Programming Field LightsOperation of all clear-lens lighting (Road Lights and Field Lights) is programmable using the light switch and CommandCenter. See Road And Field Light Identification With CommandCenter Indicators for further information on lights and display indicators. Light display shows for 10 seconds whenever light switch is changed to a programmable setting. If no changes are made, display returns to last screen shown. Light indicators change from black-to-white when programmed ON. OFF Position: In the OFF position, all clear-lens lighting is programmed OFF (all black indicators). P (Park), Road and Field Positions: Turn light switch (A) to desired position and observe CommandCenter display (B); black lights are OFF, white lights are ON. NOTE: P (Park) and Road positions are not programmable. To program Field Lights, rotate Light Switch to field position and observe CommandCenter display. All clear-lens lights are selectable when programming Field 1 or 2 positions. Rotate Command dial (C) to highlight desired light, then press SELECT switch (D) to turn light ON (white indicator) or OFF (black indicator). Changes to ON/OFF settings take place immediately. Normally one field light position is programmed to operate only certain lights, such as rear facing field lights. Moving dimmer switch to high beam will give a second option to program lights such as all rear facing lights and side mounted roof lights. The other field position is used to operate all clear-lens lighting and again moving the dimmer switch will allow for a fourth option for programmable lighting. |
|
OURX935,00003DB -19-12JAN06-1/1 |
