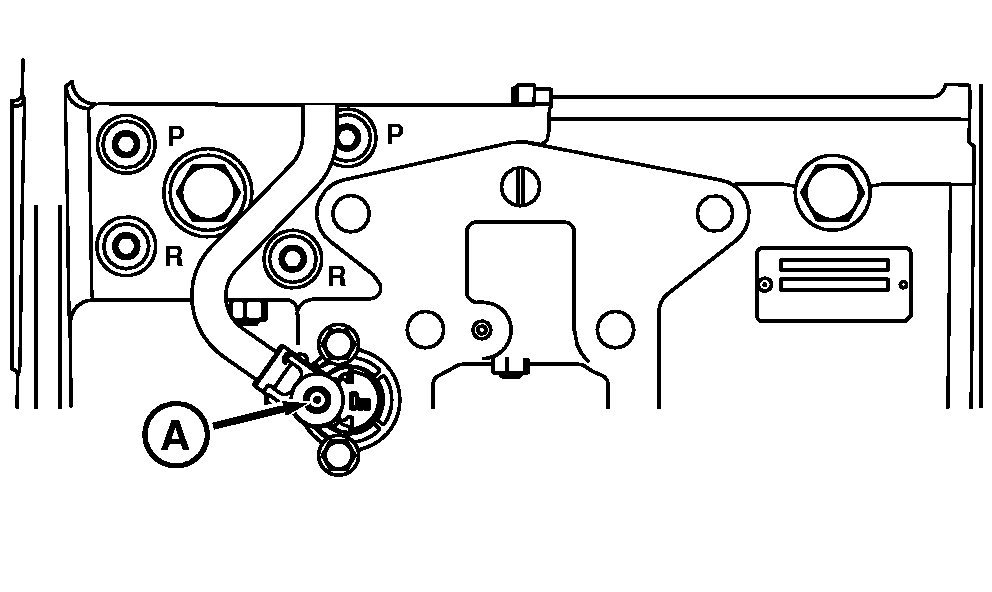

Using Hydraulic Motor Case Drain (Sump)Remove plug (A) and install a hydraulic sump coupler available from your John Deere ™ Dealer. Connect motor case or seal drain hose to coupler, making sure hose end and coupler are clean. Allows oil to drain directly to reservoir (differential case) from hydraulic motor, by-passing remote coupler, SCV and filter.
|
|
|
John Deere is a trademark of Deere & Company | OURX935,00003E3 -19-02FEB06-1/2 |
|

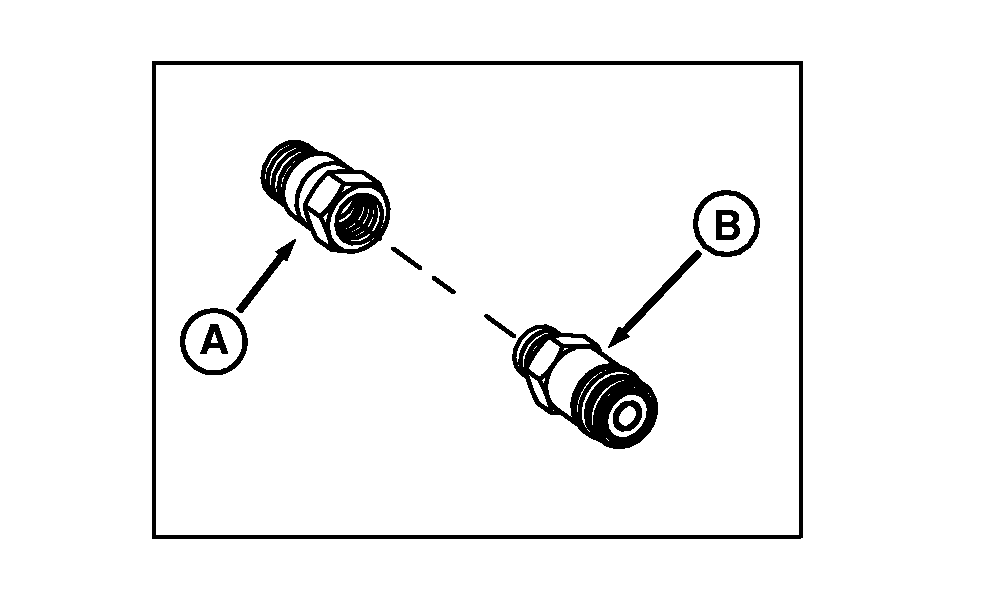

NOTE: Couplers may vary depending on equipment. Older equipment uses a standard coupler while newer seeding equipment may require a Flush Face coupler (B) and adapter (A) for the drain.
|
|
OURX935,00003E3 -19-02FEB06-2/2 |
