Setting Day Backlight, Night Backlight and Screen Contrast
RXA0085829

Display
RXA0085045

Day/Night Backlight Adjust


A-Vehicle Settings Switch
B-Command Dial
C-Select Switch
D-Display
E-Day/Night Backlight Adjust
F-Contrast Adjust

Press Settings Switch (A) to view menu items on Display (D). Rotate Command Dial (B) to scroll through menu items. Press Select Switch (C) when desired item is highlighted.

Menu Items on Display (D)

English Translation (if applies) Day Backlight Day Backlight Night Backlight Night Backlight Contrast Adjust Contrast Adjust



Using Command Dial, raise or lower setting to achieve desired screen appearance and press Select Switch.

Setting Range
Day Backlight 0 (Dim) -10 (Bright)
Night Backlight 0 (Dim) -10 (Bright)
Contrast Adjust 0 (Min."Light") -12 (Max. "Dark")



Day Backlight (D): Used to adjust brightness of CommandCenter and corner post displays, when light switch is off.

Night Backlight (D): Used to adjust brightness of CommandCenter and corner post displays and switches, when light switch is on.

Contrast Adjust (E): Used to adjust contrast of CommandCenter and corner post displays.

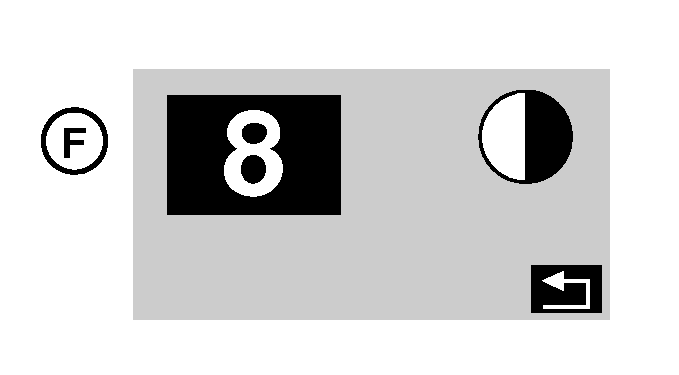

RXA0085046

Contrast Adjust

OURX935,00003F3 -19-02JAN08-1/1
