Operating Cab Heat, Defrost and Air Conditioning-Standard Equipment

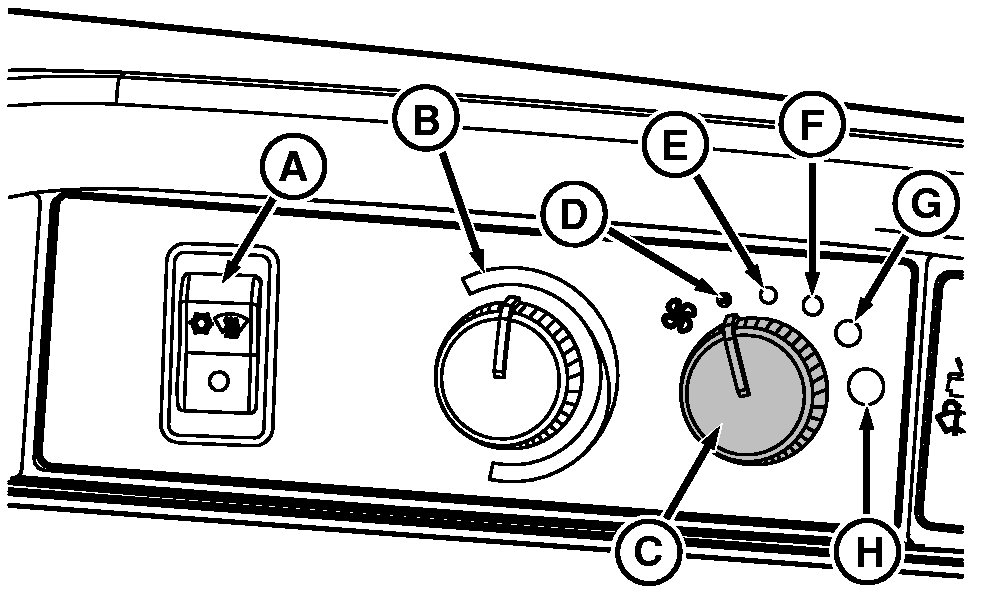

Push air conditioning switch (A) ON for cab cooling or defrosting. Leave switch OFF for heat.

Turn temperature control knob (B) to red zone for heating or blue zone for cooling.

IMPORTANT: If system is not cooling properly, turn air conditioning switch off to avoid possible compressor damage.

NOTE: Purge position is used for rapid cab cool down.

Turn fan speed control knob (C) to desired setting (D-H).

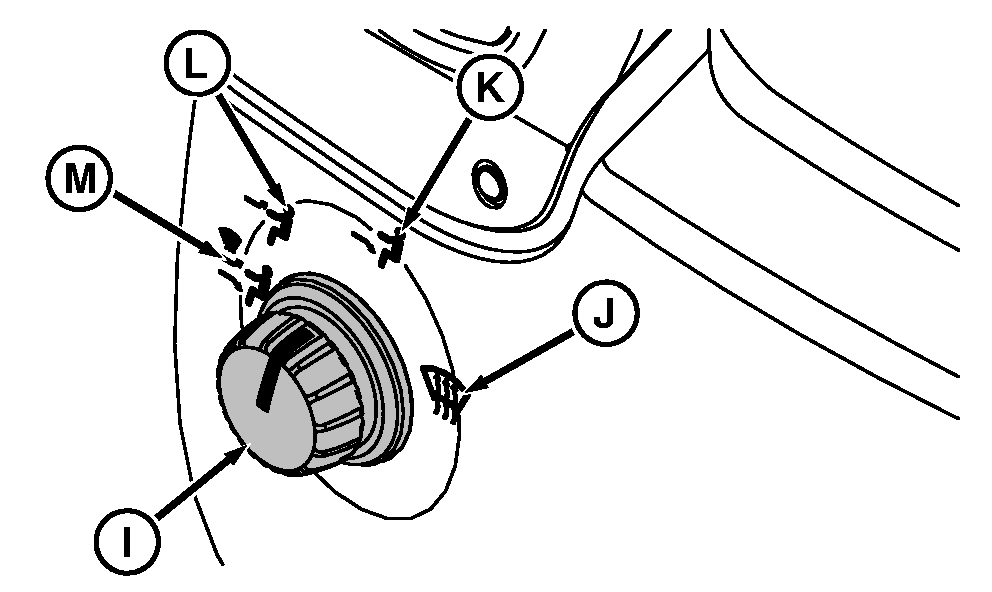

Turn air flow direction knob (I) for desired outlet (J-M).

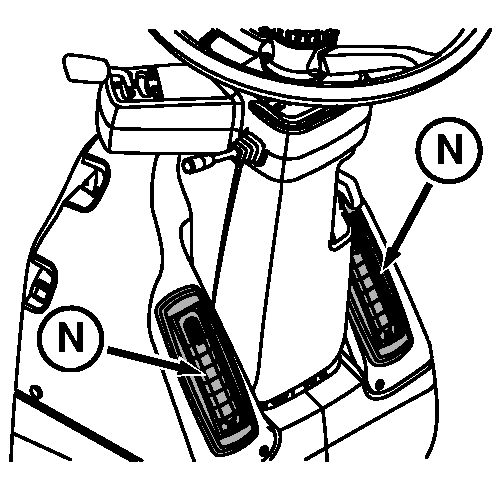

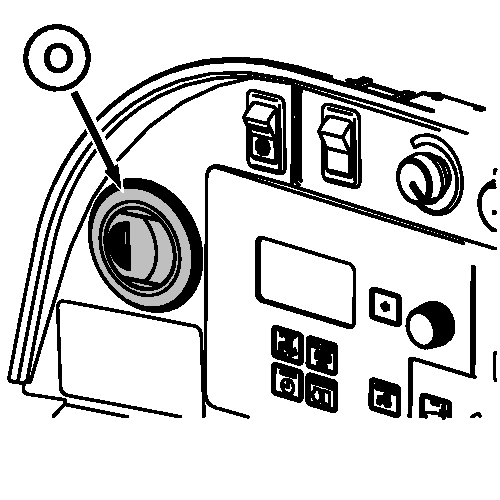

Cowl Louvers (N) and right side console louver (O) are used to direct air flow to the windows for defrosting or at the operator for heating and cooling.

A-Air Conditioning Switch
B-Temperature Control Knob
C-Fan Control Knob
D-Off
E-Low Speed
F-Medium Speed
G-High Speed
H-Purge
I-Air Flow Direction Knob
J-Windshield
K-Floor
L-Dash
M-All
N-Cowl Louvers
O-Right Side Console Louver
