Operating Hazard Lights and Extremity Transport Lights

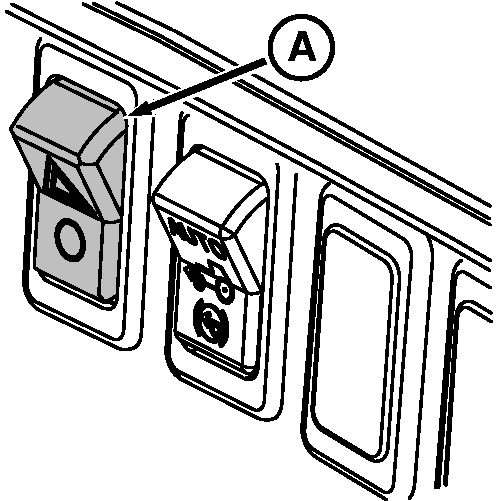

A-Hazard Light Switch

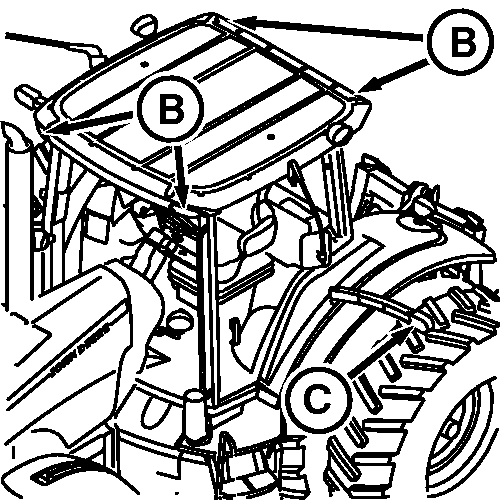

B-Hazard Lights
C-Extremity Transport Light

CAUTION: To prevent possible personal injury, always operate flashing lights when traveling on a highway or public roads, except where prohibited by law.

Push Hazard Light Switch (A) to activate flashing amber hazard lights (B) at front and rear of tractor.

CAUTION: Extremity Transport Lights (C) are needed when tractor width exceeds 3.7 m (12 ft). Always use road lights and transport warning lights when operating tractor on a road or highway at night OR during the day. Extremity Transport Lights alert other vehicles of your extended width. Use flashing warning lights and turn signals day and night. Follow local regulations for equipment lighting and marking.

IMPORTANT: To avoid damage, extremity lights may be retracted when parking tractor in storage building.

Extremity Transport Lights operate with Hazard Light Switch in "ON" position or Light Switch in "road" position.

Adjust Extremity Transport Lights (C) no more than 400 mm (16 in.) from widest point of tractor.

OURX935,0000418 -19-01MAR06-1/1
