Operating Windshield Wiper and Washer (If Equipped)

Wiper/washer switch (A) has four positions:

  • Off
  • Intermittent Wipe
  • Slow Speed
  • Fast Speed

Push switch in to operate optional windshield washer.

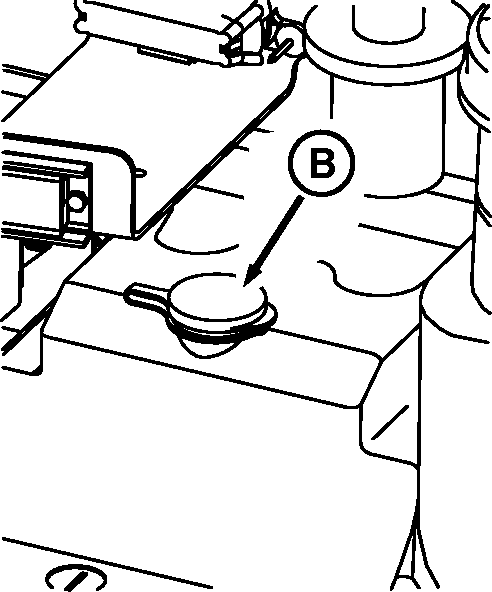

Fill reservoir (B) with non-freezing windshield washer fluid. Reservoir is located inside the battery box.

NOTE: Windshield washer nozzles can be adjusted by inserting a small pin into nozzle opening.

RXA0086144
RXA0086143


A-Windshield Wiper/Washer Switch
B-Washer Fluid Reservoir

OURX935,0000430 -19-02JAN08-1/1
