Installing and Using Clevis Assembly

IMPORTANT: Remove clevis assembly, before using PTO shaft, or whenever PTO shaft might cause interference.

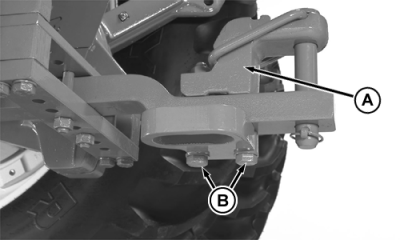

Clevis assembly (A) must be attached ONLY to top of drawbar.

Install clevis assembly and tighten cap screws (B).

Clevis Assembly Retaining Cap Screws - Specification

Category 3 -Torque 610 N·m (450 lb-ft)
Category 4 -Torque 430 N·m (320 lb-ft)

Remove lock pin (D). Lift pin with handle (C) and position in notch of clevis assembly.

Attach implement.

Insert pin only through drawbar, not through clevis assembly, if towed implement also has a clevis assembly. DO NOT insert pin through all four members.


A-Clevis Assembly
B-Cap Screw
C-Lift Pin with Handle
D-Lock Pin

RW26279
RXA0085808
RW26282

OURX935,000045E -19-27JAN06-1/1
