Adjusting Implement Level

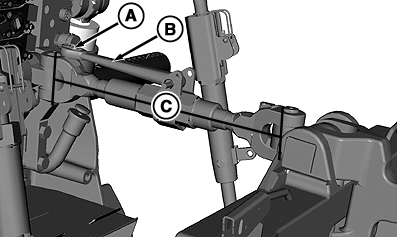

RXA0078877

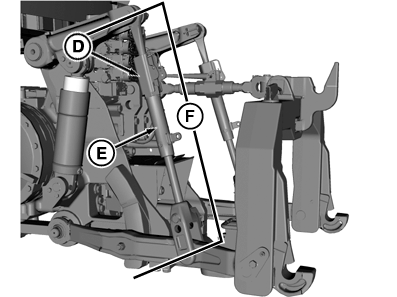

RXA0086805


A-Locking Ring
B-Handle


C-Center Link Adjustment Length


D-Collar
E-Center Portion


F-Lift Link Adjustment Length

1. Adjust center link to level implement front-to-rear.

  • Remove Locking Ring (A).
  • Lift Handle (B).
  • Rotate center portion of center link to desired position.

2. Secure handle with locking ring.

3. Measure between centers of pins (C).

Center Link - Specification

Adjustment -Category 3 Length 690-834 mm (27.2-32.8 in.)
Category 4 Length 681-831 mm (26.8-32.7 in.)

4. Adjust lift links to level implement side-to-side. Slide collar (D) upward. Rotate center portion (E) of lift link to desired position.

Lift Link Length - Specification

Adjustment -Category 3/3N Length 1004-1143 mm (39.5-45 in.)
Category 4 Length 966-1137 mm (38-44.8 in.)

5. Lock out lateral float.

6. Secure collar in position.

OURX935,0000481 -19-20SEP07-1/1
