Checking Transmission PARK Position

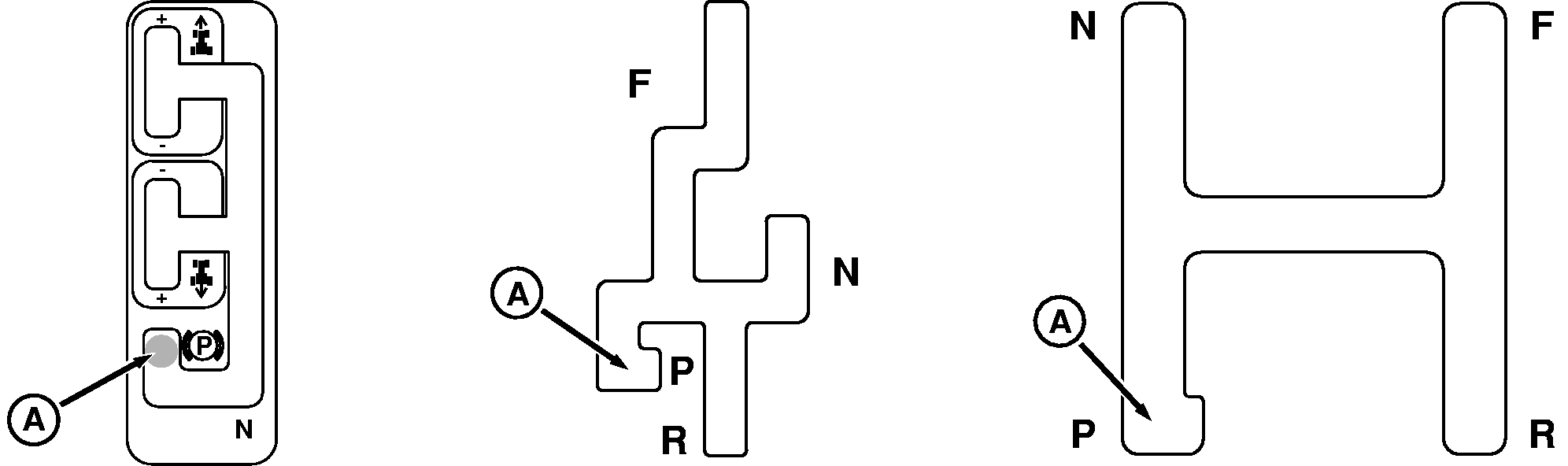

A-Shift Lever in PARK

SERVICE INTERVAL - 250 HOURS     Position tractor on a 30% incline (1 m (3.3 ft) vertically for every 3 m (9.8 ft) horizontally) with front of tractor facing downward.

Move shift lever (A) to PARK position. Transmission should be repaired immediately by your John Deere Dealer, if tractor does not hold on incline with shift lever in PARK position.

OURX935,000048A -19-21APR08-1/1
