Adjusting Front Grille Lights |
|
|
|
1.

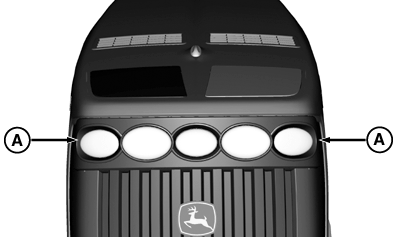

To remove bezel, place one hand on each side of bezel (A) and pull straight back.

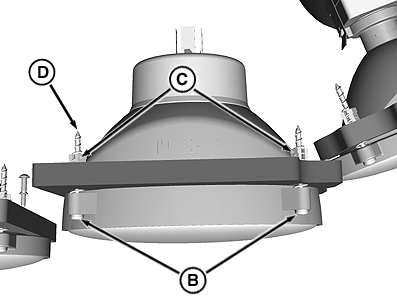

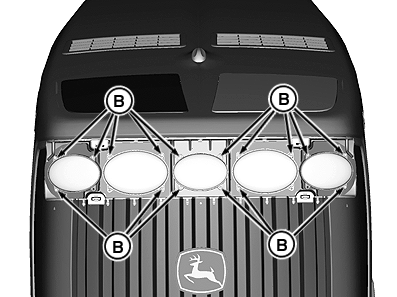

2. Adjust the light beam by turning aiming screws (B). 3. To return light to factory setting, adjust cap screws so the screw tips (D) are flush with plastic retainers (C), then adjust light beams from there.
|
|
OURX935,00004A2 -19-14FEB06-1/1 |
