Servicing Air Intake System

SERVICE INTERVAL - 750 HOURS

* Interval can vary according to operating conditions



Check all air intake system joints (A) to make sure that that they are not damaged and have tight connections with no air leaks.

Check hose clamps (B) at turbocharger to make sure that that they are not damaged and have a tight connection.


A-Air Intake System Joint
B-Hose Clamps

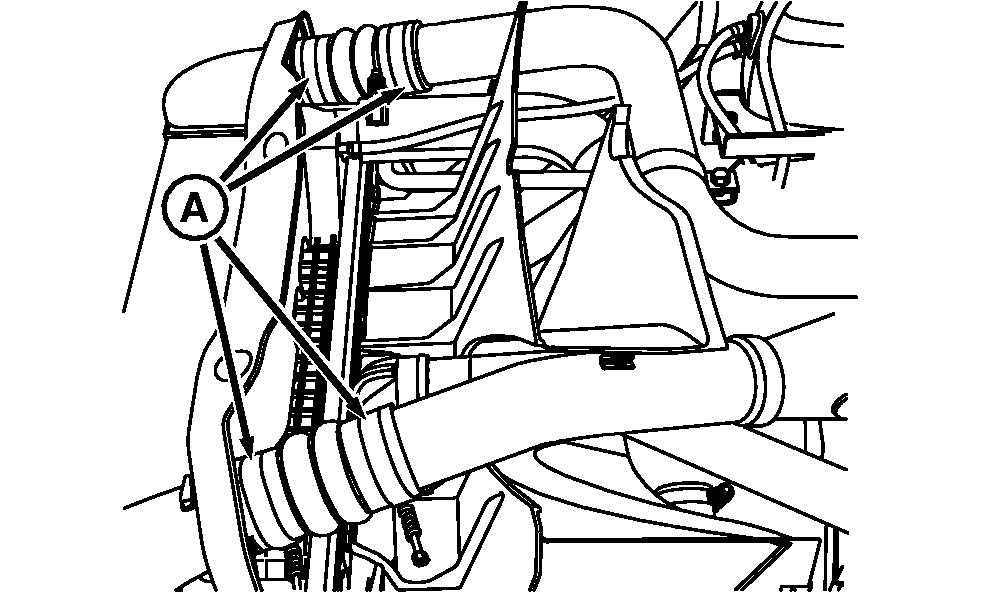

RXA0080176

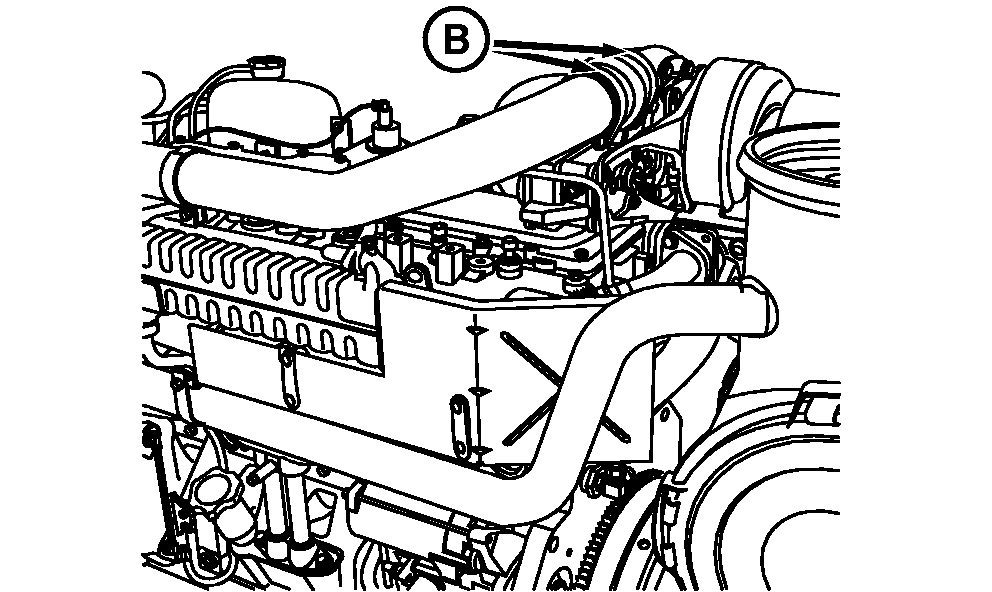

RXA0079201

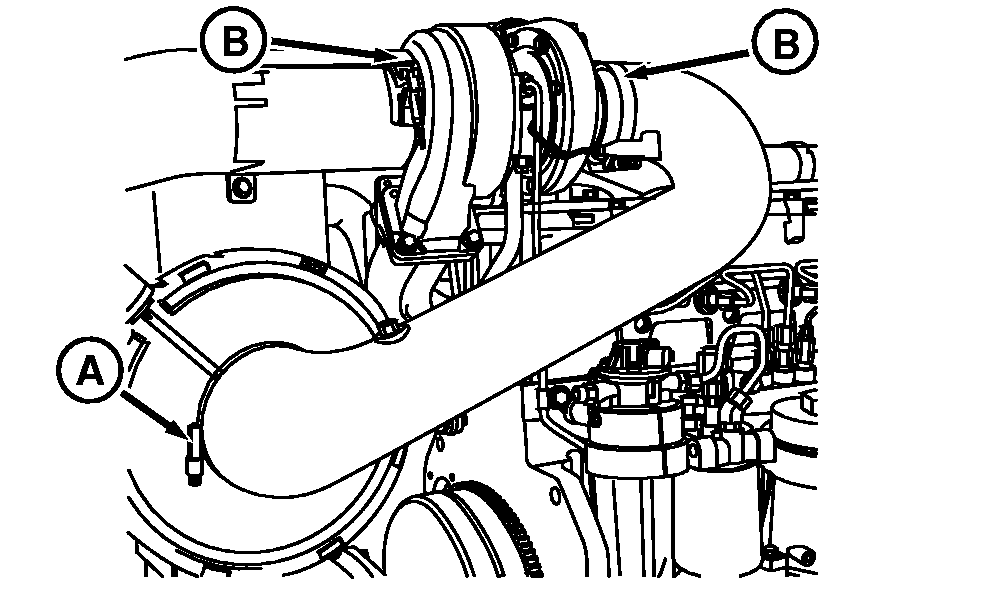

RXA0079202

OURX935,00004F5 -19-21APR08-1/1
