Inspecting Auxiliary Drive Belt

SERVICE INTERVAL - ANNUALLY



Inspect auxiliary drive belt as outlined below.

1. Inspect auxiliary drive belt indicator.

2. If indicator (A) is within normal operating band (B), do NOT change auxiliary drive belt. If indicator (A) is within stretch indicator band (C), change auxiliary drive belt.

3. Release belt, then check to see that tensioner pulley turns smoothly without binding. See Replacing Auxiliary Drive Belt in this section.

4. If tensioner pulley appears damaged or worn, replace it.

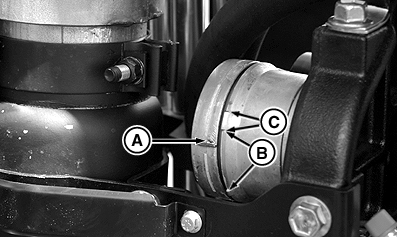

RXA0078787


A-Indicator
B-Normal Operating Band
C-Stretch Indicator Band
