Digital Indicators-Tachometer, Ground Speed and Transmission

A-Tachometer: Displays engine speed in multiples of 10. If "- - -" is displayed, no speed signal is being received.

B-Travel Speed Indicator: Displays travel speed in either miles-per-hour or kilometers-per-hour, depending on operator selected units (U.S. or Metric).

If "- - -" is displayed, no speed signal is being received.

C-Transmission Information: Shows if transmission is in Neutral-N, Forward-F, Reverse-R or Park-P.

If "- - -" is displayed, no gear signal is being received.

IVT Only: Shows speed bands 1 or 2 and speed settings.

PST Only: Shows gear selected.

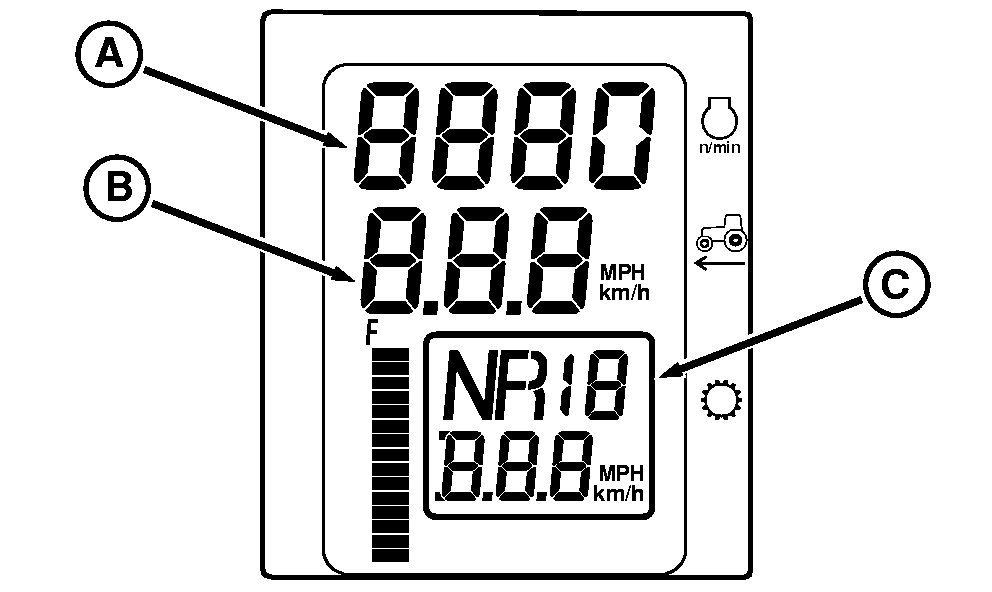

A-Tachometer
B-Travel Speed Indicator
C-Transmission Information

OURX935,000055C -19-01AUG05-1/1
