Replacing Front Grille Flood Light Bulb-Standard Lighting

1. Raise hood.

2. Disconnect wiring harness plug (B).

3. Rotate bulb (A) counterclockwise approximately 1/4 turn and remove.

4. Install bulb in reverse order of removal.

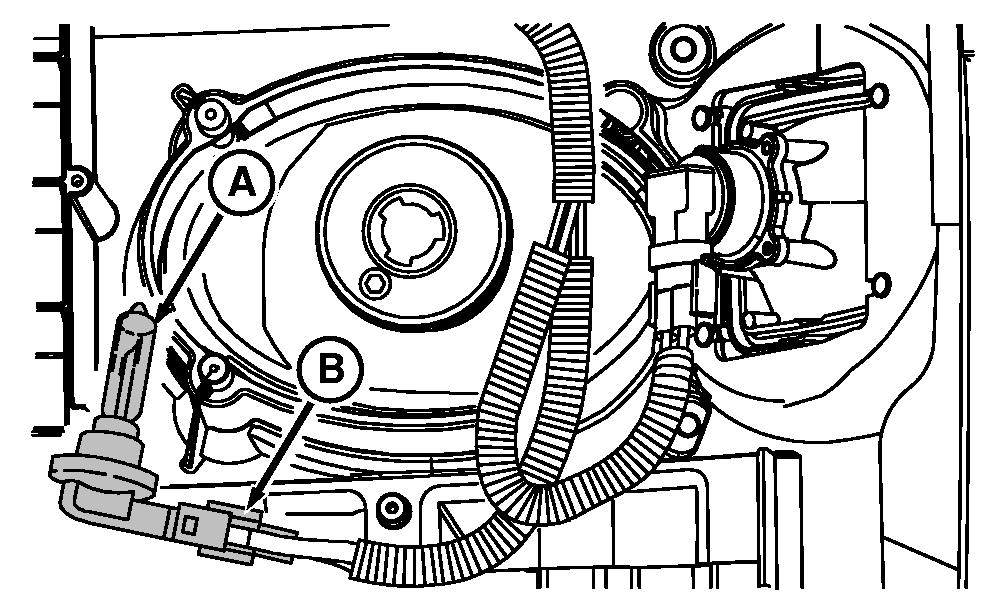

A-Bulb
B-Wiring Harness Plug

RXA0068499

Right-Hand Side Shown

OURX935,0000769 -19-02JAN08-1/1
