Using Differential Lock

NOTE: On some tractors both front and rear axles have differential locks. When equipped with both, the front axle differential lock will engage when the rear differential lock engages.

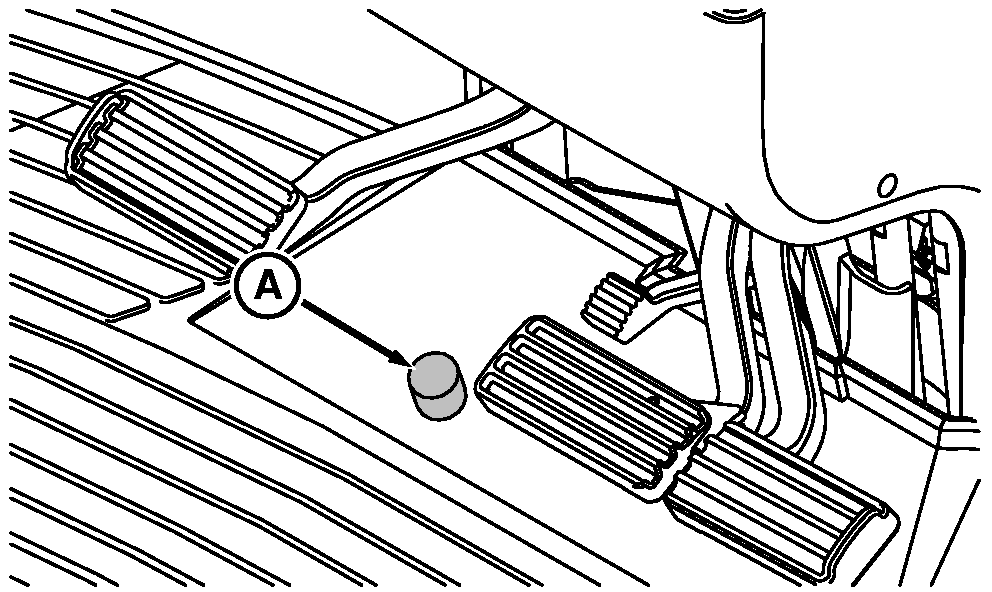

When one wheel begins to slip, engage differential lock by pressing switch (A). Indicator light on display panel will light. Disengage differential lock by pressing either brake pedal.

A-Differential Lock Switch

OURX935,00007A4 -19-08JUN05-1/1
