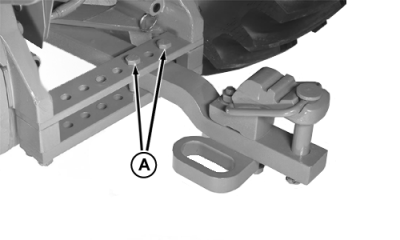

Remove drawbar locking bolts (A).
Slide drawbar to desired position.
Install a locking bolt against each side of drawbar. Tighten bolts.
Drawbar Locking Bolts - Specification
A-Locking Bolts
AG,RX15494,2753 -19-18SEP07-1/1
