AutoPowr Selector Guidelines

The AutoPowr selector is a four-position switch (A) providing two automated productivity functions:

  • Load control provides automatic transmission ground speed adjustment under load to maintain constant peak power levels and maximum productivity.
  • Fuel economy function provides constant vehicle speed at reduced engine speed in light load or no-load conditions.

causym CAUTION: Avoid possible injury from unexpected acceleration. When load is reduced, tractor will resume selected set speed.

NOTE: For most applications, maximum productivity and fuel economy is realized when the selector is in positions 1, 2 or 3.

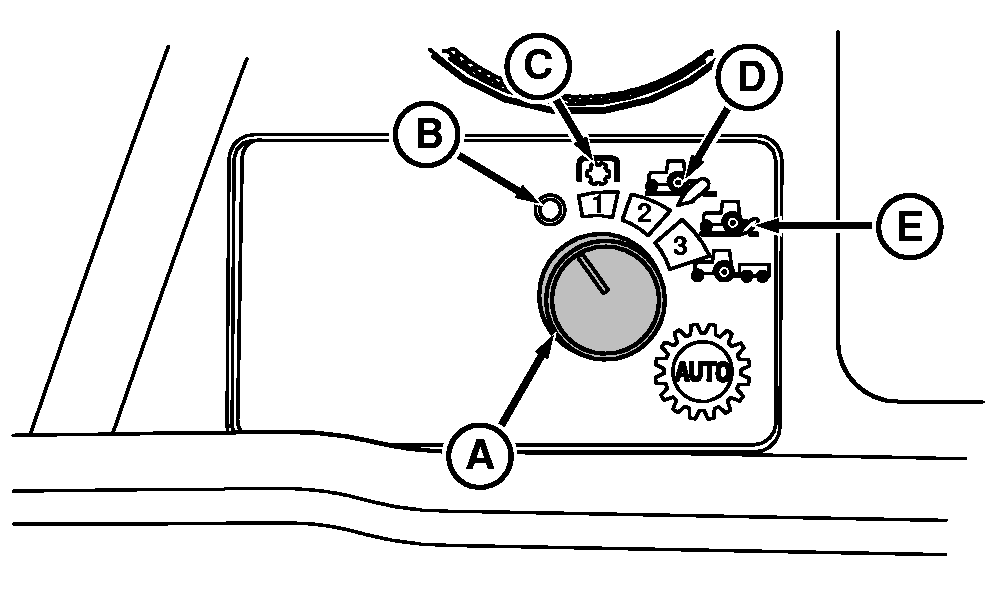

RXA0068282


A-Four-Position Switch
B-Position OFF
C-Position 1-PTO
D-Position 2-Heavy Tillage
E-Position 3-Transport or Light Tillage

BB92646,000001F -19-16AUG05-1/1
