Using QUIK-TATCH Weights

Up to 20 QUIK-TATCH weights can be installed on tractors.

Install QUIK-TATCH weights, balanced on each side of center (C). The first two weights must be installed as a pair.

Run retaining bolts (A) through holes and secure with a nut to hold six weights or fewer in position. Tighten bolts.

Weight Attaching Bolts - Specification

Bolt -Torque 230 N·m (170 lb-ft)

Insert retainers between weights, one with threaded hole upward (B) and the other with threaded hole downward when eight or more weights are installed. Tighten bolts.

Weight Attaching Bolts - Specification

Bolt -Torque 230 N·m (170 lb-ft)

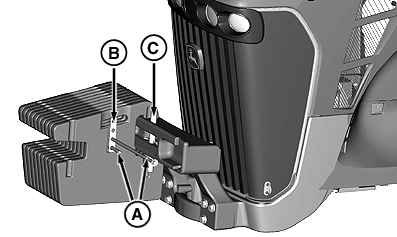

RXA0080130


A-Retaining Bolts
B-Retainer with Hole Up
C-Center

BB92646,000005D -19-05AUG05-1/1
