STOP, Service Alert and Information Indicators

NOTE: All STOP, Service Alert, and Information Indicators are accompanied by an informative message, diagnostic trouble code, and/or fault description shown on the CommandCenter display.

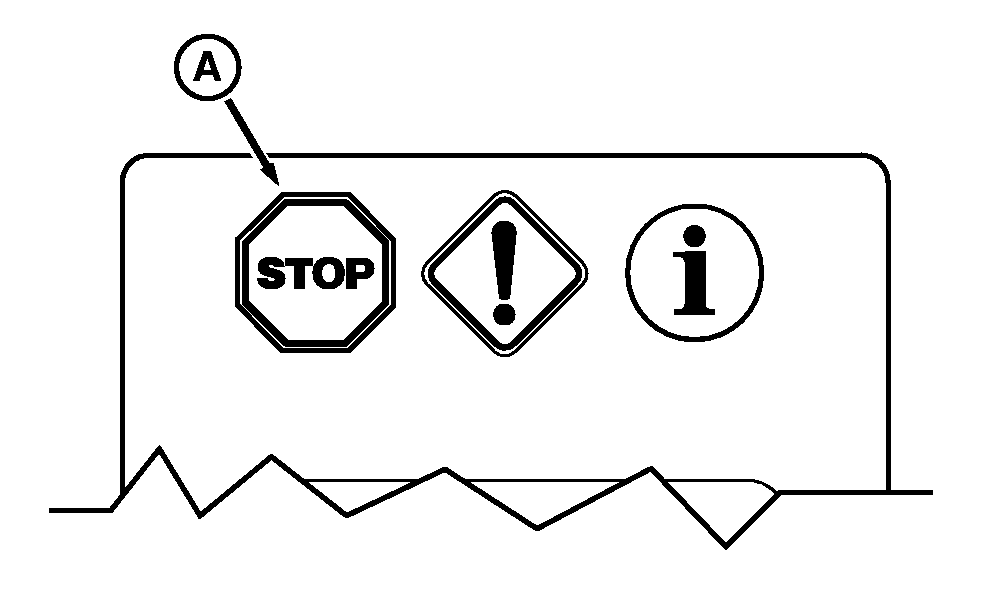

STOP Indicator (A): Light flashes and alarm sounds continuously to alert operator that a serious malfunction has occurred, which requires immediate attention or the tractor will be damaged.

IMPORTANT: Engine shuts down automatically if STOP signal is received when operator is out of the seat for longer than three seconds and the transmission control is in PARK. CommandCenter display can be reset by cycling key switch.

Immediately stop operations, reduce engine speed to idle, then shut down engine and turn key "ON" to observe CommandCenter display for problem identification. In the example to the right, "Transmission oil pressure low" (B) identifies the problem. It may be necessary to access the stored codes, see Using Diagnostics, Stored Codes and CAN Statistics. Correct problem before restarting.

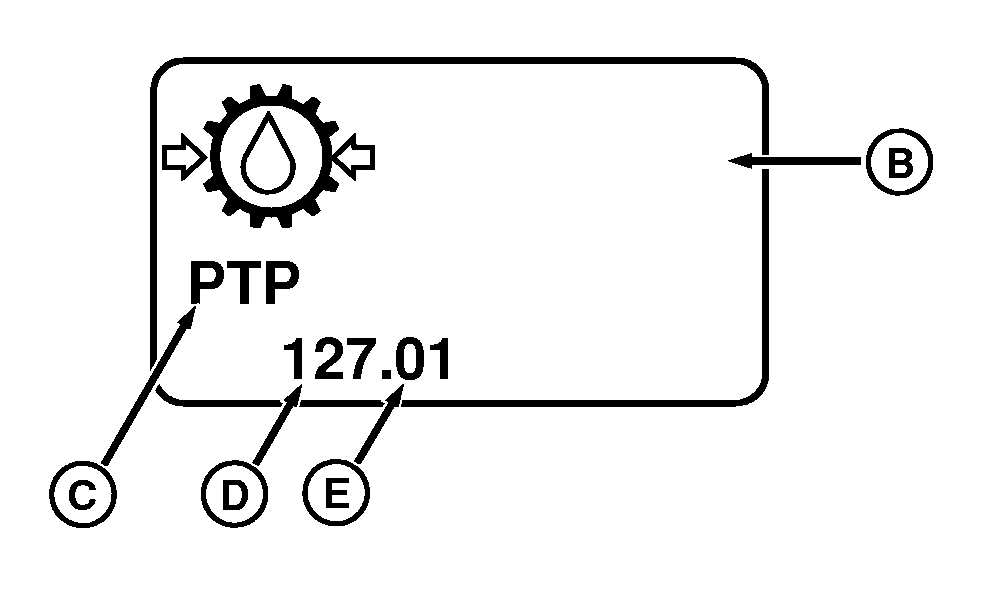

When controller detects a malfunction or condition "out of range", a diagnostic trouble code containing the controller (C) followed by an industry standard number is displayed. Numbers to the left of the decimal indicate the malfunction (D) and numbers to the right of decimal indicate the condition (E).

Reference the diagnostic trouble code list in this manual for possible actions an operator can take. If situation cannot be corrected, record and give this information to your John Deere dealer to diagnose the problem.

If a code is not in the Operator's Manual Diagnostic Trouble Code Section, contact your local John Deere dealer.

A-STOP Indicator
B-Transmission Oil Pressure Low
C-Controller
D-Malfunction
E-Condition

BB92646,0000091 -19-19AUG05-1/2

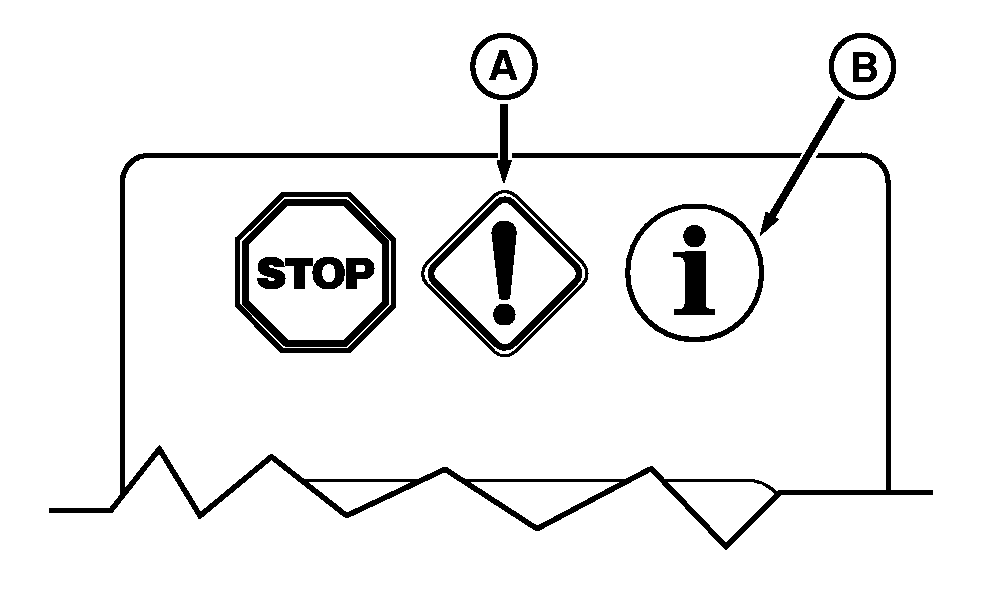

Service Alert Indicator (A): Light flashes and alarm sounds five times to inform operator that a performance or operational problem has been detected, which needs to be resolved as soon as possible. Continued operations can cause a Service Alert to escalate into a STOP indicator. If appropriate corrective action is not taken soon (serviced, repaired, operated in a different manner), a significant reduction in performance will occur, resulting in machine damage.

Information (INFO) Indicator (B): Light comes on continuously and alarm sounds for two seconds, telling operator that a fault condition has been detected. Tractor operations can continue without damage; however, performance of some functions may be degraded. Operating in a different manner may correct the out of range condition and clear INFO indicator.

Some Service Alerts and Information Indicators can be "acknowledged" and display cleared by pressing the Select Switch on the CommandCenter. The display will return to a normal mode. This will allow tractor function to continue however the diagnostic trouble code may reappear at a later time if the condition still exists.

When either a Service Alert or Information Indicator is displayed it is suggested the tractor be placed in PARK and engine shut off. Restart engine to verify active diagnostic trouble code will reappear before contacting your John Deere dealer. The code condition will be verified when tractor is restarted.

A-Service Alert Indicator
B-Information Indicator

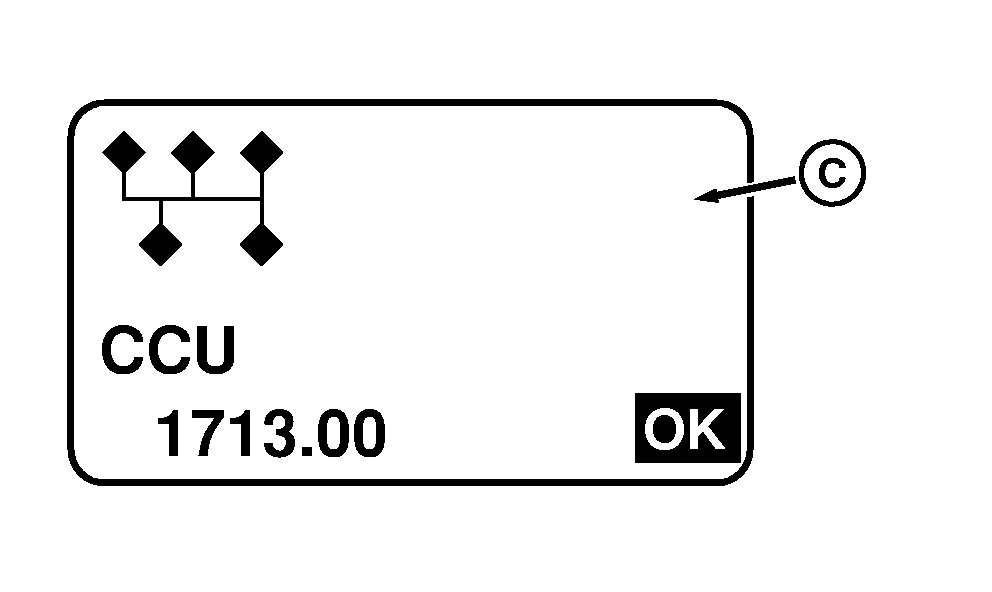

C-Identification System

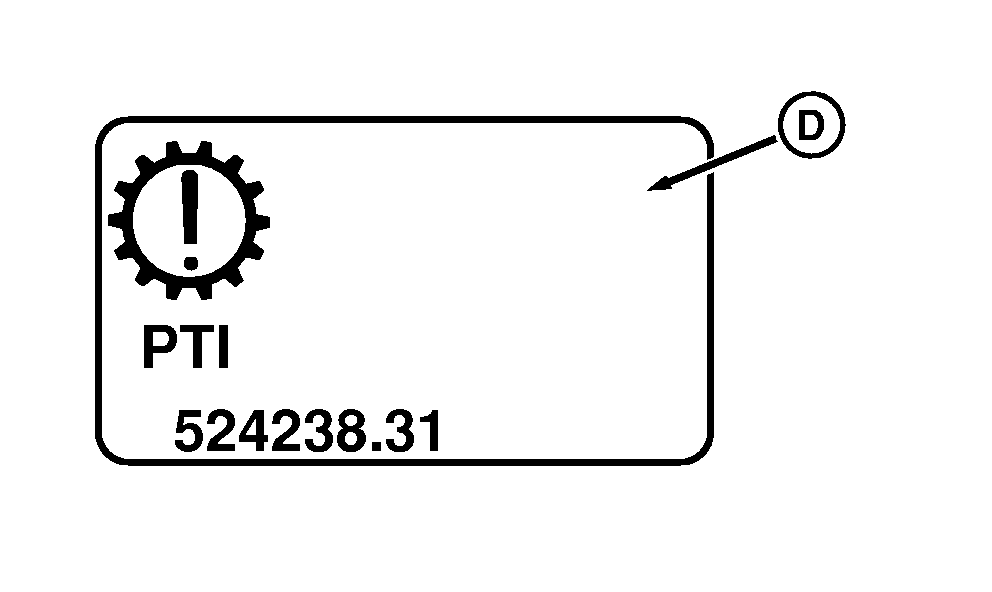

D-Transmission System
