Adjusting Steering Wheel and Column

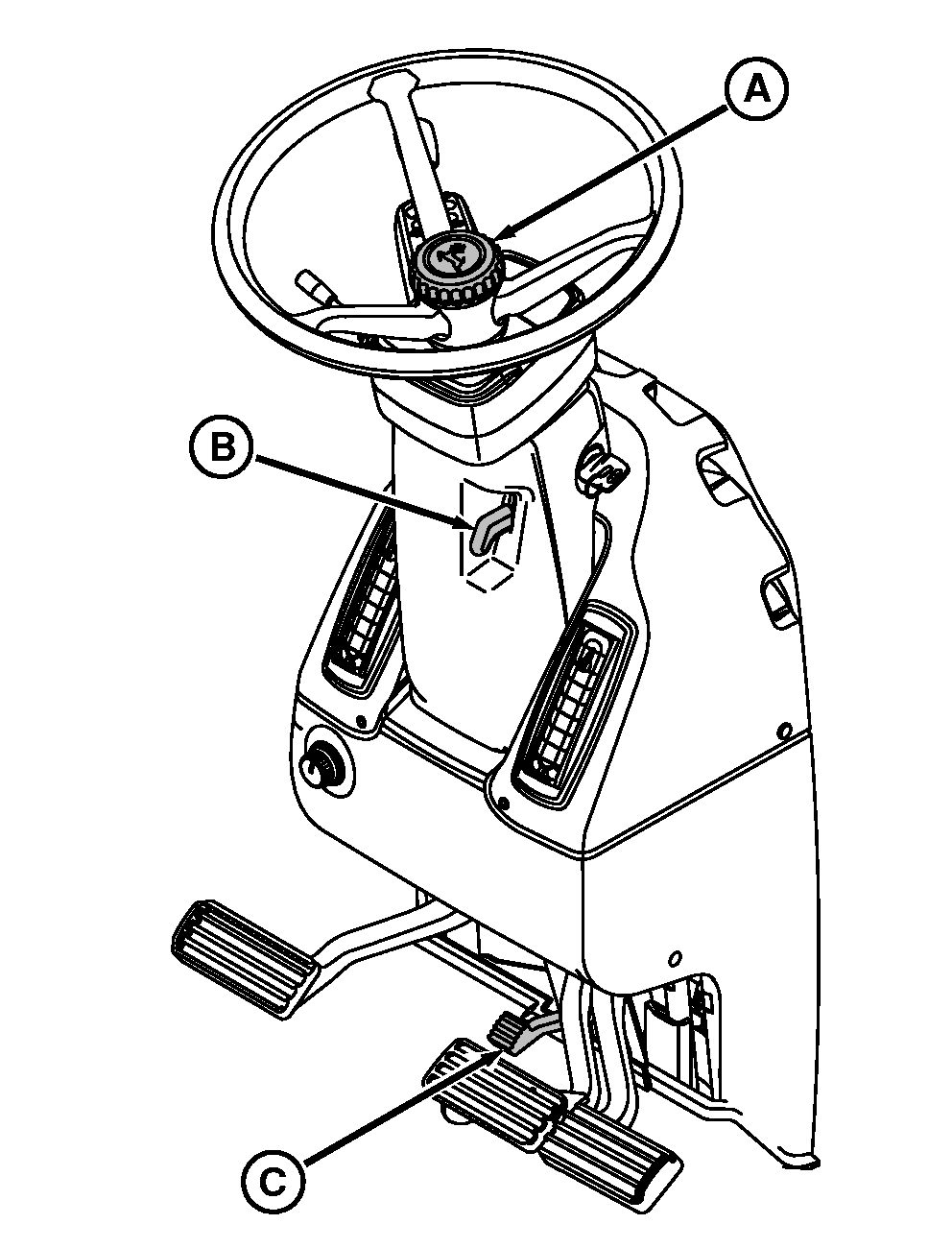

Telescope: Rotate knob (A) counterclockwise to extend or retract steering wheel. Rotate knob clockwise to lock.

Tilt: Pull up on lever (B) and move steering column to desired position. Release lever to lock.

Memory: Push down on foot pedal (C) to permit steering column to automatically move up and out of the way for easy entry or exit.

Push down on foot pedal and pull down on steering wheel to return steering column to previous setting.

A-Knob
B-Lever
C-Foot Pedal

OUO1011,000539F -19-04OCT04-1/1
