Adjusting Timed Detent
 CAUTION:
Avoid possible personal injury. DO NOT use timed detents for loader operation.
Timed Detent Function
Three detent functions are available to hold each SCV function for an adjustable time.
-
0 second (No Timed Detent)-Hold control lever in extend or retract position. Oil flow continues until control lever is released. (This position is recommended for loaders and implements requiring frequent height or depth adjustments.)
-
1-60 seconds (Adjustable Timed Detent)-Move control lever to (detented) extend or retract position and release. After click, lever returns to neutral. Oil flow continues until time expires. (This position is recommended for implements operating at full depth or with depth stops on the cylinders.)
-
C (Continuous Flow)-Control lever is moved to full (detented) extend or retract position and released. Lever returns to neutral. Oil flow continues until control lever is moved away from Neutral or until tractor is shut off. (This position is recommended for hydraulic motor use or applications where a continuous flow of oil is required.)
Timed Detent Adjustment

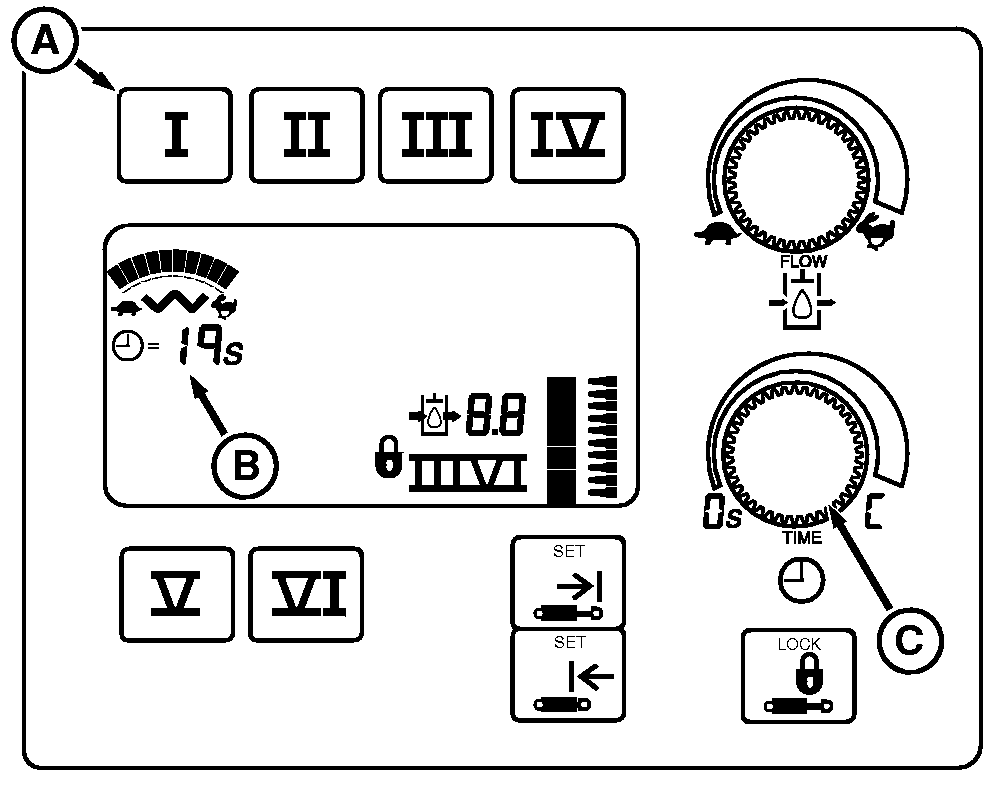

Press selected SCV switch (A). Display (B) shows set time.
Adjust timed detent by turning knob (C) clockwise (longer detent time or "C" continuous detent time). Turn knob counterclockwise (shorter detent time or "0" zero detent time).
NOTE:
SCV can be operated to observe detents while in adjustment mode.
Move SCV lever forward or rearward from neutral to cancel a detent function manually.
|
