Using TouchSet Depth Controls

CAUTION: Avoid personal injury or death. Do not attempt to install depth control sensors on implements not intended for this system. See implement operator's manual.

Moving implement control unit, sensor, connectors, or linkages, when engine is running, may cause unexpected movement. Stay clear of implement when starting engine.

Tractor selective control valve (SCV I) is used to electronically control raising, lowering, and setting of implement depth, without leaving the cab.

Control lever (A) is used to control implement operating depth and height that implement will raise.

Touch switches (B) and (C) set limits of implement movement controlled by SCV control lever for repeatability of implement raised and lowered positions.

Knob (D) adjusts flow rate for each SCV to determine speed at which implement will raise and lower.

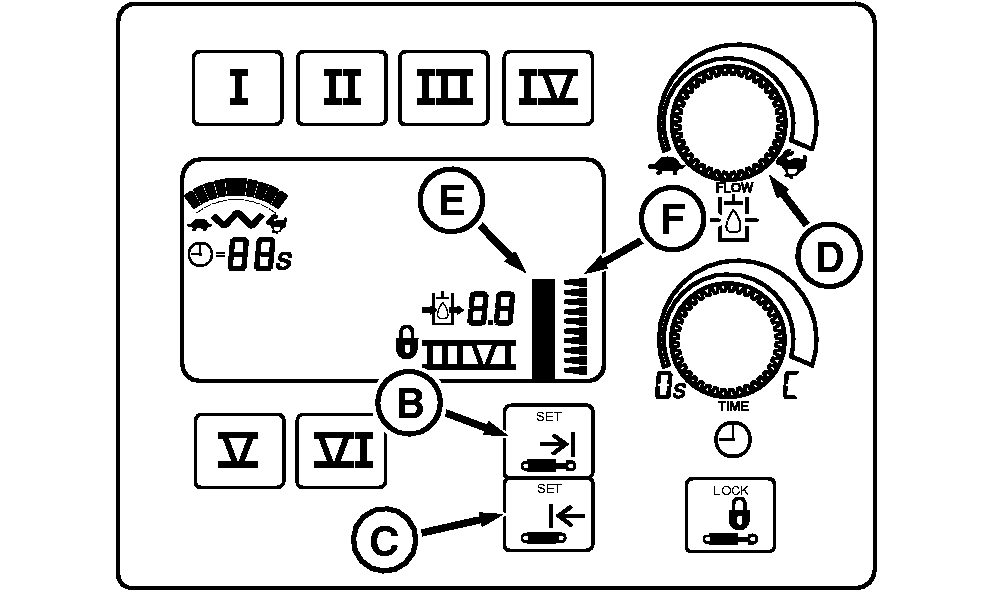

A-SCV I Control Lever
B-Raise Position Set Switch
C-Lower Position Set Switch
D-Flow Rate Adjustment Knob
E-Set Point Indicator
F-Position Point Indicator
