Using Hitch Lever Display-Setting Depth and Lock/Dampening

Using Hitch Command Lever

    Lever movements within the proportional region (D and E), commands hitch to raise or lower. Raise or lower rate depends on how far the lever is moved from center position. Push lever down to lower hitch; pull lever up to raise hitch.

  • Lever will not raise hitch above upper height limit, but will move hitch below the saved depth setting.
  • A short duration "flick" of the lever into proportional region will change depth command by 1 or 2 counts.

Setting Depth

    Use lever to move hitch to desired operating depth, then press Depth Set Switch (M) to store in memory.

  • Each time Depth Set Switch is pressed, the previous depth setting is erased and the current depth is saved as the new setting.
  • Operating depth can be pre-set before field operation. Hold lever forward until depth command reaches desired value, then store by pressing Depth Set Switch.

Display

    Hitch information appears in lower half of display when using hitch lever, or can be permanently displayed by selecting with the Command Dial.

  • Current depth is represented by both a numeric value and indicator mark (L). The numeric value is also present on other hitch adjustment displays.
  • The saved depth setting is represented by a horizontal bar (K). Pressing Depth Set Switch (M) will move bar to align with indicator mark (L).
  • Screens (I-K) show current depth above (I), below (J) and at stored depth (K).
  • Vertical bar in the display shows the upper height limit setting.

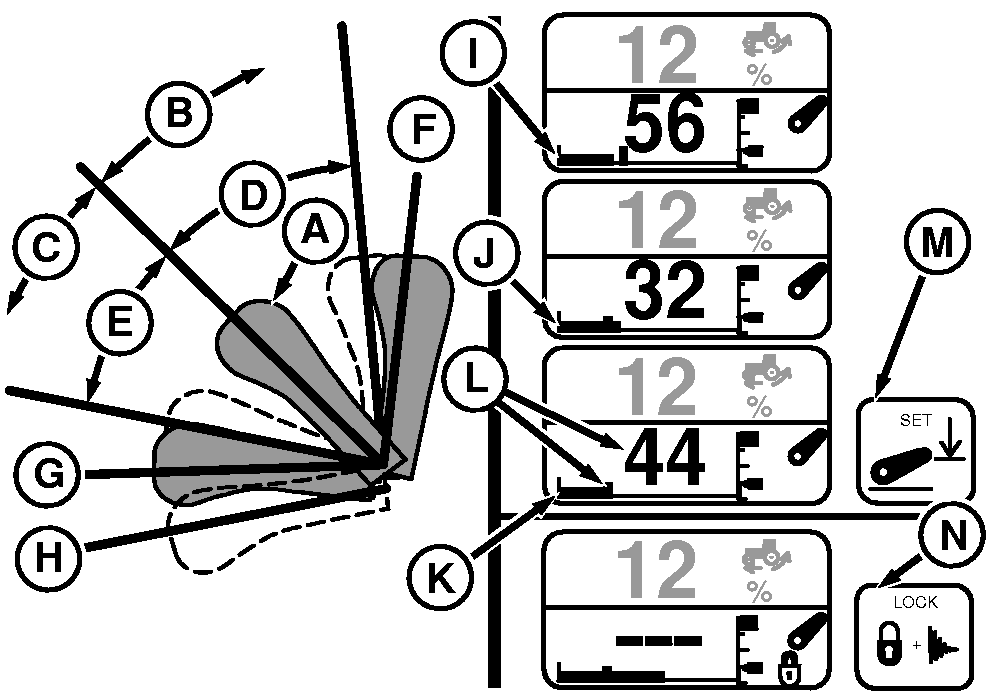

RXA0085778


A-Hitch Command Lever
B-Hitch Raise-Slow
C-Hitch Lower-Slow
D-Hitch Raise-Fast
E-Hitch Lower-Fast
F-Detent Position, Raise
G-Detent Position, Lower
H-Float Position
I-Hitch Above Stored Depth Setting
J-Hitch Below Stored Depth Setting
K-Hitch at Stored Depth Setting
L-Current Depth Indicators
M-Depth Set Switch
N-Hitch Lock / Dampening Switch

OURX935,0000017 -19-02JAN08-1/2

Lever Detents

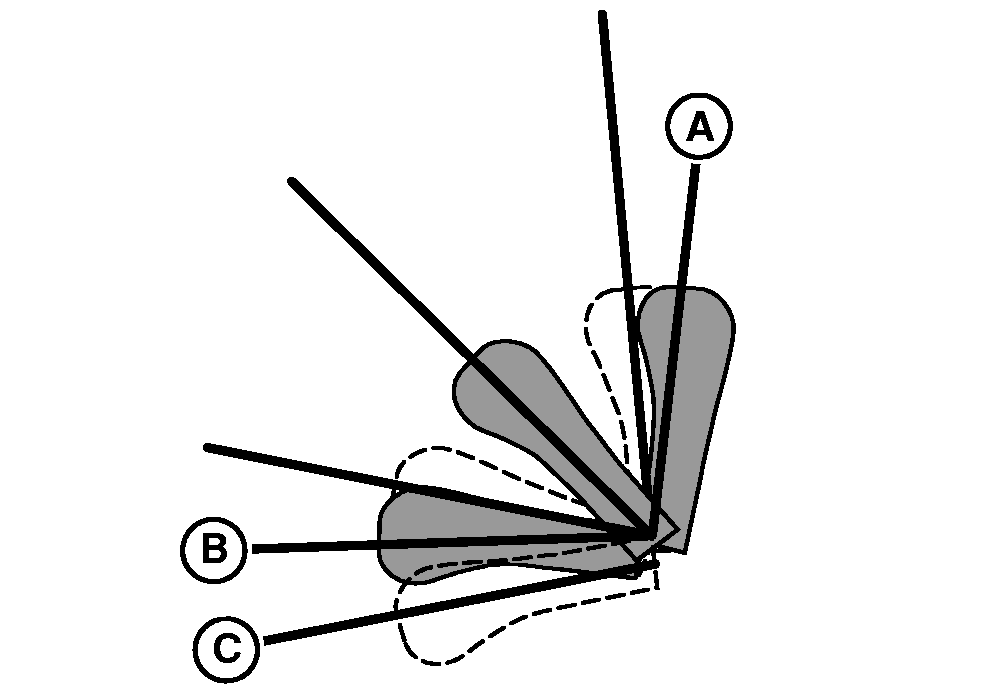

    When lever is pulled into detent (A) and released, hitch raises to upper height limit. When pushed into detent (B) and released, hitch lowers to stored depth.

  • If lever is held in the forward detent while lowering, hitch will lower beyond saved depth setting. If tractor is moving, hitch will raise to stored depth when lever is released.
  • Depth can be varied by moving lever in the proportional region. Pushing lever into forward detent and releasing will return hitch to saved depth setting.

Lever Float

Float position (C) holds hitch lower valve open continuously and is useful when detaching an implement. See Using Float Operation in this section for proper setup if implement requires that hitch floats during field operation.

Lock/Dampening

causym CAUTION: To prevent possible injury and equipment damage, set hitch lock and dampening ON before transporting.

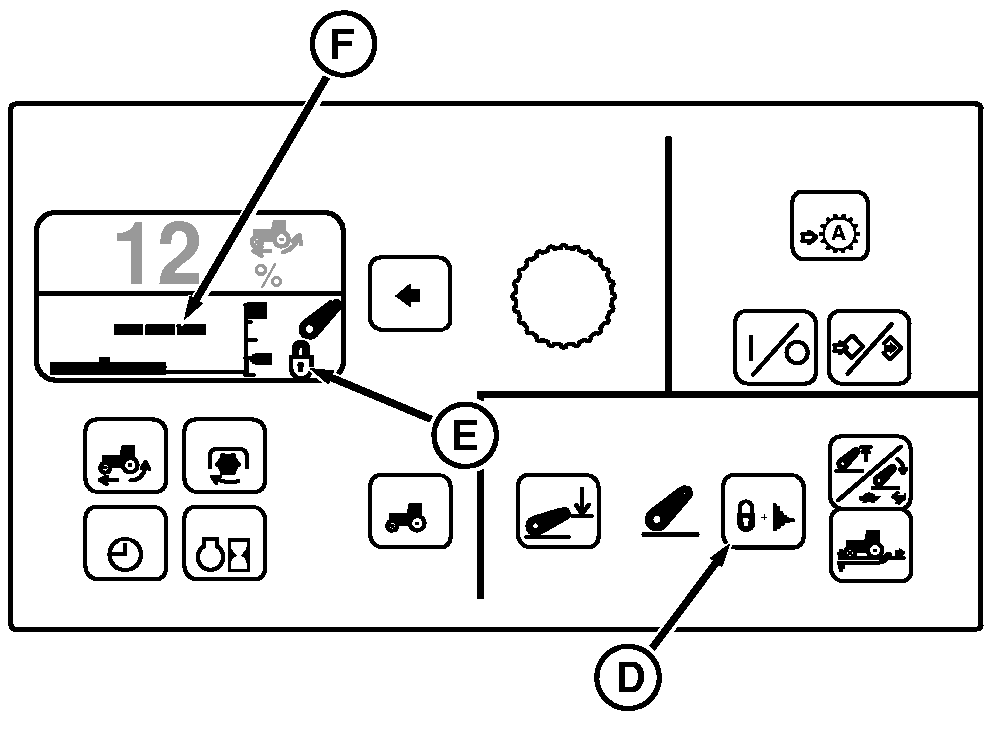

    Before transport or during operations when hitch is not used, raise hitch with lever then press Hitch Lock / Dampening Switch (D). Lock symbol (E) will appear and numeric depth value changes to dashes (F). This locks the hitch and enables hitch dampening.

  • If hitch leaks down while tractor is stopped, hitch will return to locked height when tractor begins moving.
  • Hitch command lever is disabled so hitch cannot be lowered (but can be raised back up to the locked position if lever held in detent).
  • Hitch dampening interrupts tractor pitching/rocking that can occur when transporting hitch-mounted equipment.

To unlock hitch and turn dampening off, press Hitch Lock / Dampening Switch again.

RXA0093551
RXA0093550


A-Raise Detent
B-Lower Detent
C-Float Position
D-Hitch Lock/Dampening Switch
E-Lock Symbol
F-Dashes

OURX935,0000017 -19-02JAN08-2/2
