Checking the Manually-Operated Hitch for Wear

causym CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

SERVICE INTERVAL - 250 HOURS

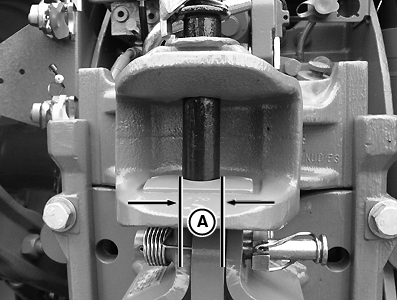

Check diameter (A) of the hitch pin.

Specification

Hitch pin -Wear limit or minimum diameter 29.0 mm 1.14 in.

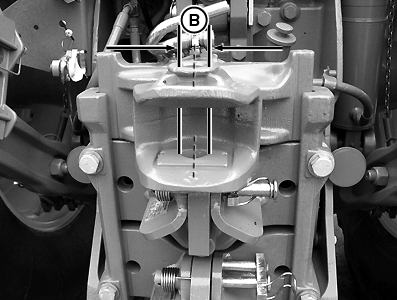

Check diameter (B) of the receiver hole.

Specification

Top and bottom receiver holes (measured in direction of travel) -Wear limit or maximum permitted diameter 35.0 mm (oval) 1.38 in. (oval)


A-Diameter (A)
B-Diameter (B)

RXA0095855
RXA0095856

OURX935,000006E -19-10JAN08-1/2

Replace retaining wire if:
Gap (X) is greater then 3 mm (0.118 in.)



IMPORTANT: If bearing play (Y) is greater than 1.5 mm (0.059 in.) the entire trailer hitch must be replace with a new hitch.

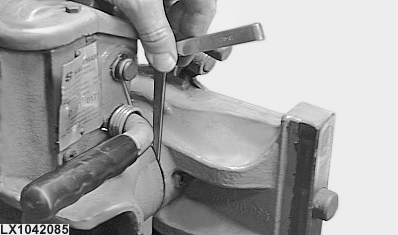

LX1042085

Gap "X"

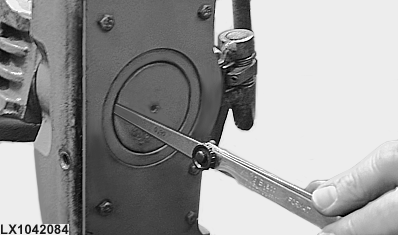

LX1042084

Bearing Play "Y"

OURX935,000006E -19-10JAN08-2/2
