Check Remote Controlled Hitch for Wear

SERVICE INTERVAL - 250 HOURS



causym CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

Check diameters (A and B) of the hitch pin

Specification

Ball-shaped hitch pin -Wear limit or minimum diameter (B) 36 mm 1.42 in.
Ball-shaped hitch pin -Wear limit or minimum diameter (C) 27 mm 1.06 in.

Check diameter (C) of the receiver hole.

Specification

Bottom receiver hole (in direction of travel) -Wear limit or maximum permitted diameter 34 mm (oval) 1.33 in. (oval)

Check thickness (D) of wear plate.

Specification

Wear plate -Wear limit or maximum permitted thickness (E) 6 mm 0.24 in.

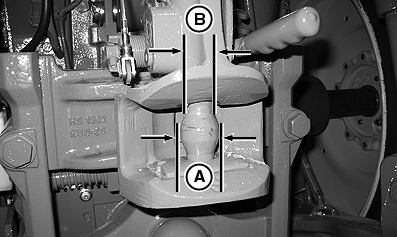

RXA0095843

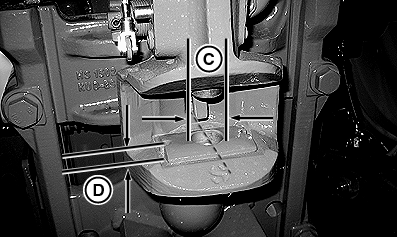

RXA0095844


A-Hitch Pin Diameter (A)
B-Hitch Pin Diameter (B)
C-Receiver Diameter (C)
D-Wear Plate Thickness (D)

OURX935,000006F -19-10JAN08-1/2

Replace retaining wire if:
Gap (X) is greater then 3 mm (0.118 in.)



IMPORTANT: If bearing play (Y) is greater than 1.5 mm (0.059 in.) the entire trailer hitch must be replace with a new hitch.

LX1042085

Gap "X"

LX1042084

Bearing Play "Y"

OURX935,000006F -19-10JAN08-2/2
