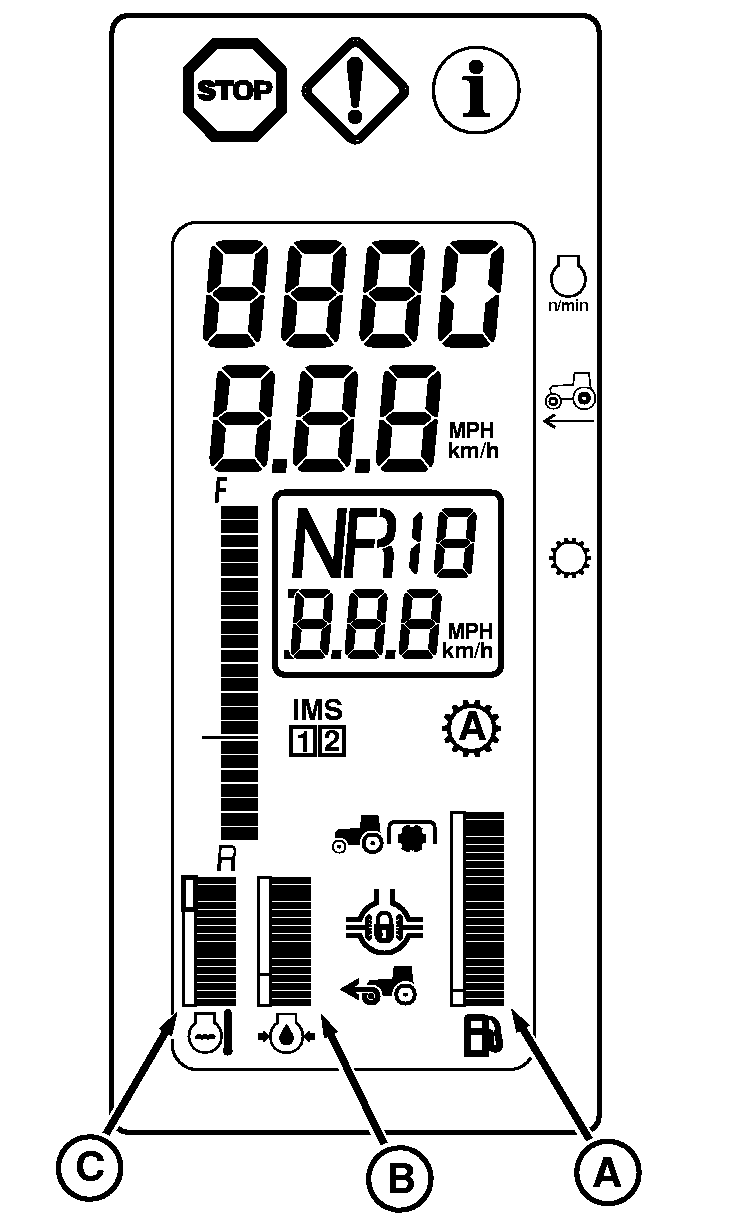

Gauges-Fuel Level, Engine Oil Pressure and Coolant TemperatureA-Fuel Level Gauge: Displays fuel level in tank. Each lighted segment represents 4% of the fuel tank's total capacity. When fuel tank is full, all segments are lit. When only the bottom segment is lit, the tank is nearly empty with approximately 40-60 L (10-15 gal.) remaining. B-Engine Oil Pressure Gauge: Shows engine oil pressure, between 8 - 320 kPa (1 - 46 psi). All segments are off when oil pressure is extremely low, 0-7 kPa. All segments are lit when pressure is 320 kPa and above. C-Coolant Temperature Gauge: Shows engine coolant temperature between 40 and 120° C. All segments are off when coolant temperature is below 40° C. All segments are lit when temperature is 120° C and above.
|
|
OURX935,0000081 -19-10JUL05-1/1 |
