Steps and Handrails

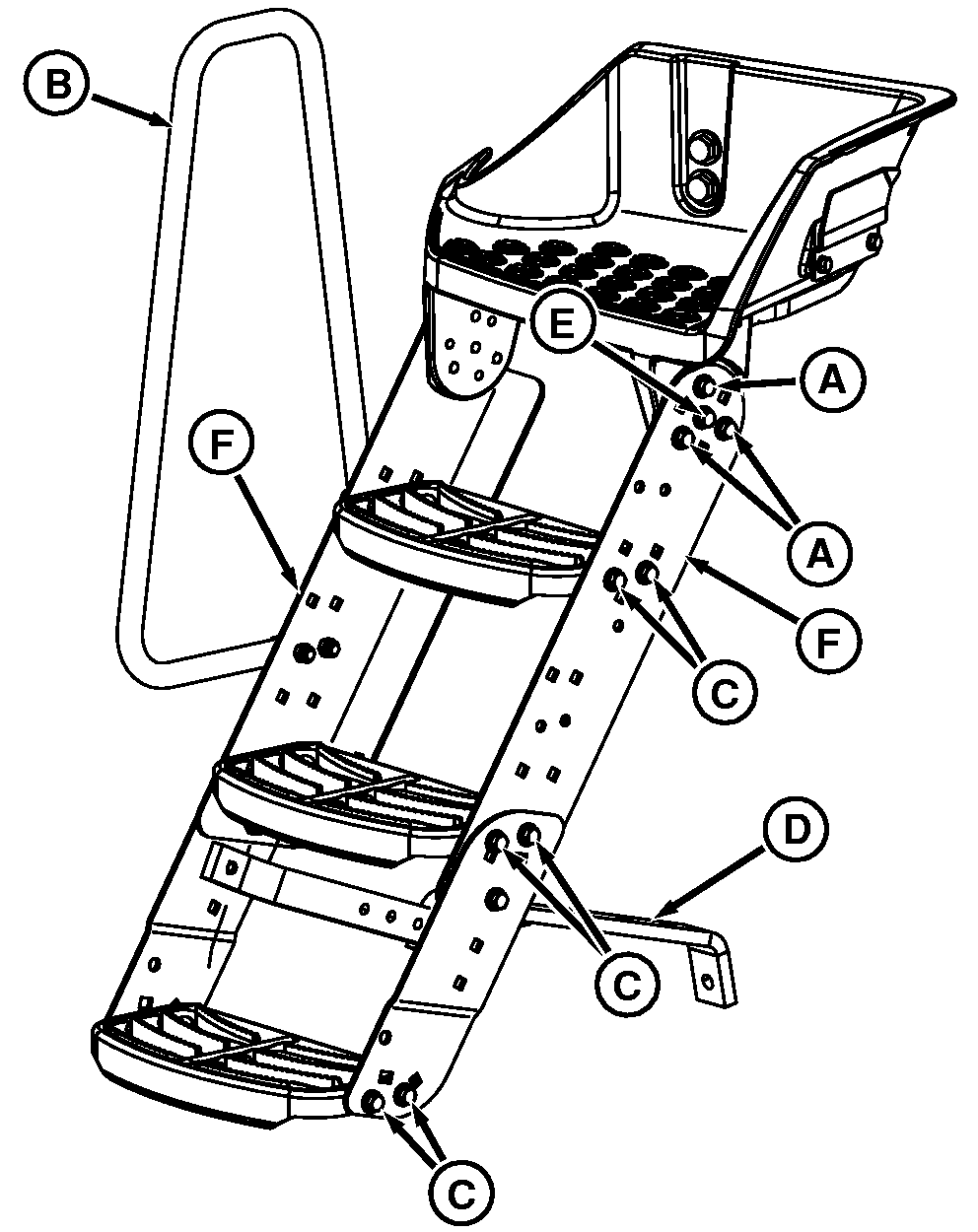

NOTE: Position steps using round holes in side panels (F) for correct individual step and handrail positioning.

Do not remove center bolt (E). Step assembly can pivot if steps need to be positioned.

Bolts (A) ensure proper angle of step assembly.

Bolts (C) installed in round holes ensure individual steps are at correct angle with step assembly angle.

Handrail (B) must be positioned in conjunction with the steps.

Strap (D) gives step assembly added support.

A-Step Angle Bolts
B-Handrail
C-Step Positioning Bolts
D-Strap
E-Center Bolt
F-Side Panels

OURX935,0000099 -19-04JUN05-1/1
