Adjusting Front Grille Lights

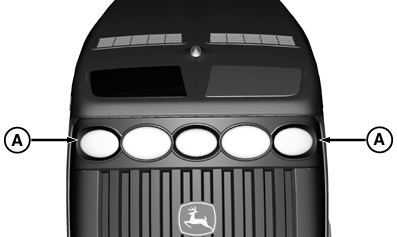

1. To remove bezel, place one hand on each side of bezel (A) and pull straight back.

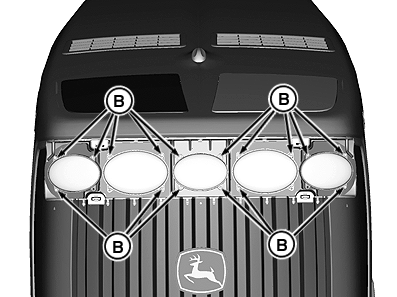

2. Adjust the beam of each bulb by turning screws (B).

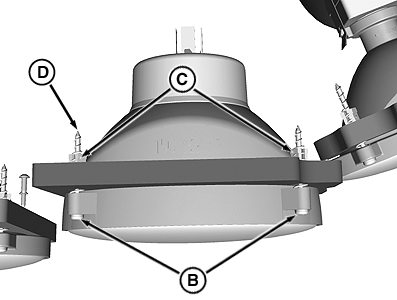

3. To return to light factory settings, adjust cap screws (C) so the screw tips (D) are flush with plastic retainers, then adjust light beams from there.


A-Position
B-Aiming Screws
C-Cap Screws
D-Screw Tips

RXA0080172
RXA0080168
RXA0080565

OURX935,000010F -19-16JUN05-1/1
