Using Strut-Type Stabilizers

IMPORTANT: Check full range of hitch movement when using stabilizing system. Check for interference when tractor is equipped with 710/70R38 or larger tires.

Adjust hitch to minimize lateral sway before transporting implement.

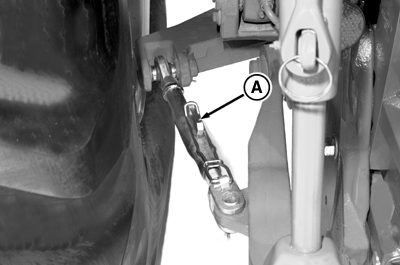

Adjust draft link width and lateral sway by turning handles (A).


A-Handle

RXA0056487

OURX935,00001CA -19-18AUG05-1/1
