Operating the Wagon Hitch

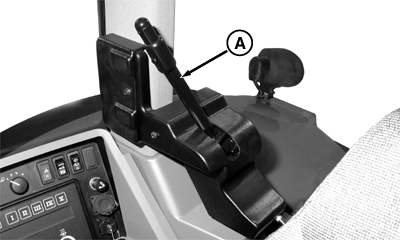

Wagon hitch can be released from the operator's seat using lever (A).

causym CAUTION: Avoid personal injury. Keep hands and fingers from hitch latching mechanism.

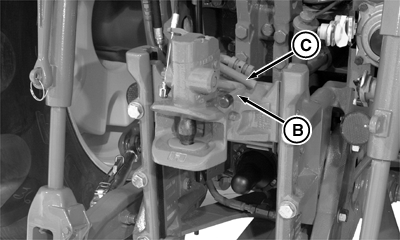

The wagon hitch closes automatically when trailer towing eye enters the hitch or can be manually closed using release lever (B).

Wagon hitch height can be adjusted using height adjustment lever (C).


A-Lever (In Cab)
B-Release Lever
C-Height Adjustment Lever

RXA0056498
RXA0056499

OURX935,00001CE -19-29JUN05-1/1
