NOTE:
Electrohydraulic steering is required for AutoTrac to function.
Refer to AutoTrac Operator's Manual for detailed instructions.
-
AutoTrac system utilizes StarFire position receiver (A) and GreenStar display (B), (C) or (D) to assist operator in steering tractor.
-
AutoTrac is a straight-line guidance system. Operator must turn vehicle at the end of each pass and to go around any field obstacles. Steering control is obtained by simply turning steering wheel.

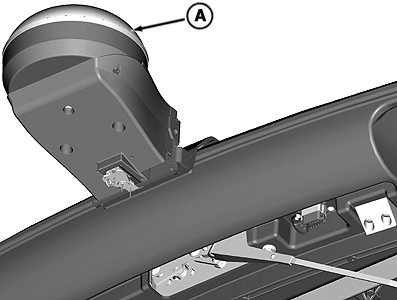

A-Position Receiver

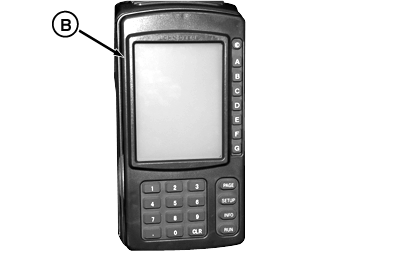

B-GSD4 Display / Mobile Processor

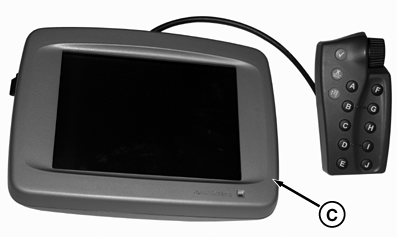

C-GSD 2100 Display

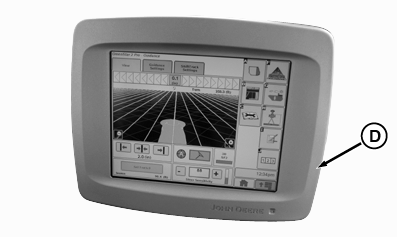

D-GSD 2600 Display
|
GSD 2100 Display
GSD 2600 Display
|
