Checking Engine Oil

Remove dipstick and check oil level with tractor on level ground before starting tractor. Oil level should be between the "ADD" and the top of the cross-hatch area (B) on dipstick (A).

NOTE: Tighten dipstick to check oil. Cross-hatch area is considered FULL.

IMPORTANT: Do not operate engine with oil level below the "ADD" mark on dipstick.

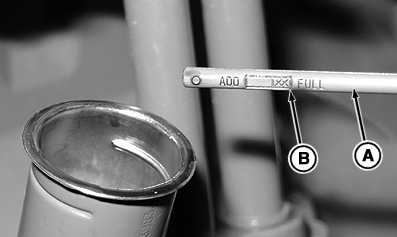

A-Dip Stick
B-Cross Hatch Area

OURX935,0000432 -19-08JAN08-1/1
