Replacing Transmission/Hydraulic Filter

SERVICE INTERVAL -

  REGULAR - 1500 HOURS *

* Both filters



IMPORTANT: Make sure old packings are removed before installing new filters.

Remove both filters (A).

Lubricate the new filter packing with hydraulic oil only.

Install and hand tighten both new filter elements.

Check oil level and add as required.

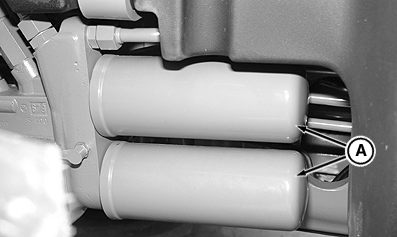

RXA0078381

Transmission/Hydraulic Filters


A-Transmission/Hydraulic Filters

OURX935,0000436 -19-08JAN08-1/1
