Lubricating Draft Link Support Shaft Bushing

SERVICE INTERVAL - 1500 HOURS




Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section.

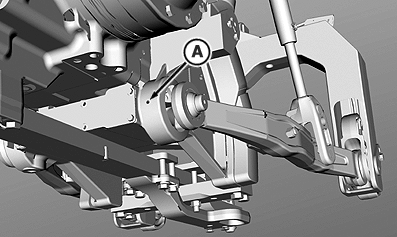

Apply one or two shots of grease to support shaft bushing (A).


A-Support Shaft Bushing

RXA0078654

OURX935,000043D -19-08JAN08-1/1
