Disconnecting Hydraulic Hoses

causym CAUTION: Push transport lock touch switch (A) on SCV TouchSet monitor before detaching implements to prevent implement movement and possible personal injury.

Lower implement to ground and push transport lock touch switch.

Push lever (D) forward to release the retract hose (C) and pull hose straight out SCV.

Pull lever back to release the extend hose (B) and pull hose straight out SCV.

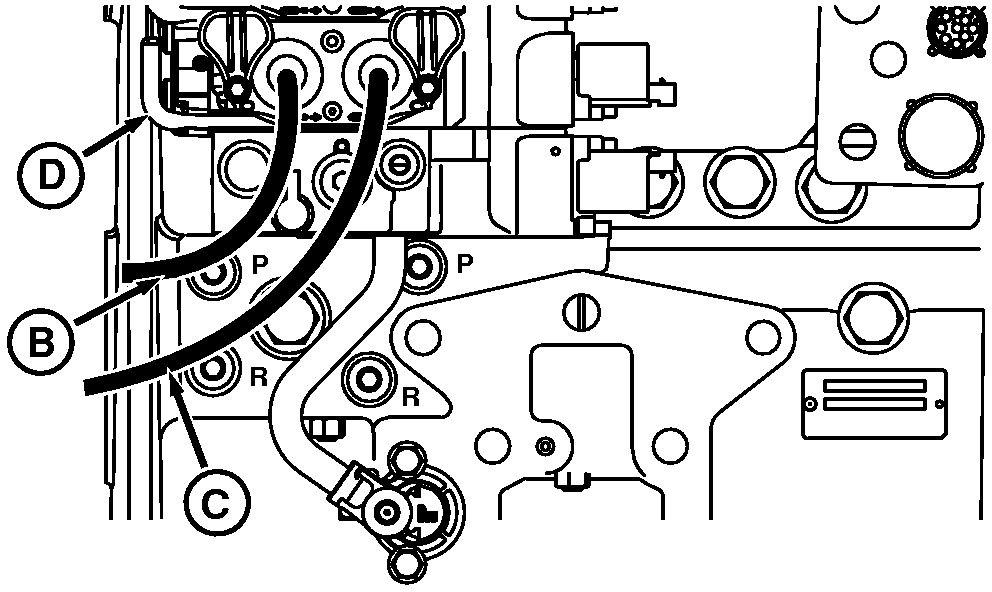

A-Transport Lock Touch Switch
B-Extend Hose
C-Retract Hose
D-Lever
