Adjusting Air Suspension Seat

IMPORTANT: If single lever control is installed on CommandARM, lever may contact right-hand console if seat is placed in full right-hand swivel position. Check seat swivel as well as seat height and fore-aft adjustment to avoid this contact.

Lumbar Support Adjustment

Rotate lever (A) to any of five positions.

Weight and Height Adjustment

Turn key to ON position. Press lower portion of switch (D) to lower or upper portion to raise the seat to adjust for individual weight and height.

Armrest Height Adjustment

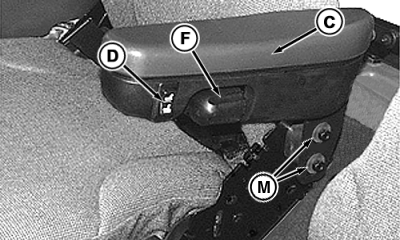

Press button (E) or loosen screws (M) to adjust armrest height.

Armrest Angle

Turn knob (F) to adjust armrest angle.

Backrest Angle

Pull up handle (G) and adjust backrest to desired angle.

Seat Swivel

Lift up on handle (H) to detent position to allow seat to swivel. Push down on handle to lock seat in position.

Fore-Aft Seat Position

Pull up on handle (I) to allow the seat to slide forward or backward.

Damping

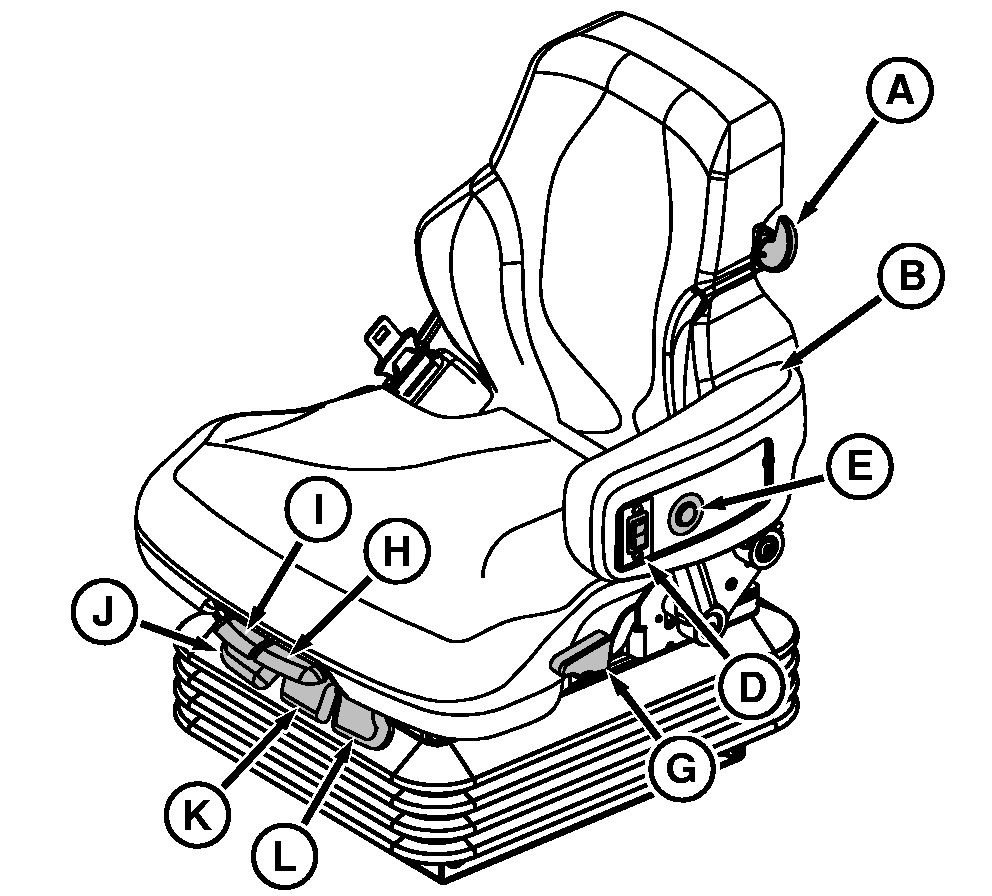

A-Lumbar Support
B-Fold-Down Armrest
C-Flip-Up Armrest
D-Seat Height Adjustment
E-Armrest Adjustment
F-Armrest Angle Adjustment
G-Backrest Angle
H-Seat Swivel
I-Fore-Aft Adjustment
J-Suspension Shock Damping
K-Lateral Movement Lock
L-Fore-Aft Movement Lock
M-Armrest Height Adjustment¹

OURX935,0000484 -19-02AUG05-1/2

Handle (J) infinitely adjusts suspension shock. Moving lever to farthest down position provides the firmest ride; farthest up position provides softest ride.

Lateral Movement Lock

Push down on handle (K) to unlock lateral seat suspension. Pull up on handle to lock seat in position.

Fore-Aft Movement Lock

Push down on handle (L) to unlock fore and aft suspension. Pull up to prevent fore-aft movement.

OURX935,0000484 -19-02AUG05-2/2
