Draining Clean Oil Reservoir

IMPORTANT: Change oil in clean oil reservoir immediately if oil is contaminated with water.

Drain transmission-hydraulic oil.

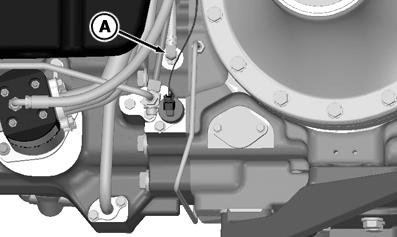

Remove plug (A) and drain oil in a catch pan. Drain approximately 34 L (9 gal) of oil from reservoir.

NOTE: If tractor is equipped with Active Seat, it will have an elbow and a return oil hose, instead of a plug, and they will have to be disconnected to drain oil.

IMPORTANT: Fill differential housing with oil. Start engine and run at slow idle until clean oil reservoir level indicator light goes off (approximately 2 minutes). Refilling clean oil reservoir will take a few minutes.

A-Plug/Elbow

OURX935,000048F -19-07JAN08-1/1
