Lubricating MFWD Axle
| SERVICE INTERVAL - 250 HOURS * |
| |
| * Daily or 10 Hours in extremely wet conditions or where Auto Trac is used. |
Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section.
Kingpins
-Lubricate fittings (A, E, F and G) until grease appears at orifice on bottom end of each kingpin bearing.
Tie Rods
-Lubricate fittings (B).
Steering Cylinder
-Lubricate fittings (C).
Axle Pivot
-Lubricate front and rear fittings (D).
A-Kingpin Fittings, Early Models
B-Tie Rod Fittings
C-Steering Cylinder Fittings
D-Axle Pivot Fittings
E-Kingpin Fitting, Top, Late Model Right Side
F-Kingpin Fittings, Top, Late Model Left Side
G-Kingpin Fittings, Bottom, Late Models
|

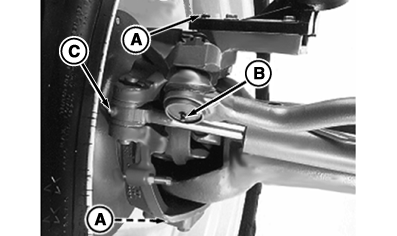

Kingpins, Tie Rods and Steering Cylinder (Early Version)

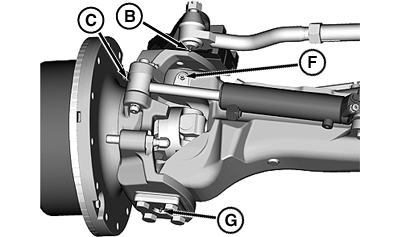

Kingpins, Tie Rods and Steering Cylinder (Right Side)

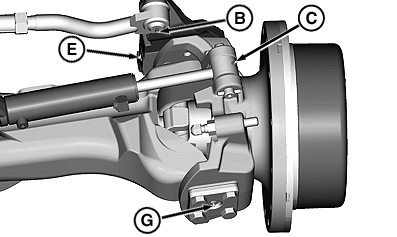

Kingpins, Tie Rods and Steering Cylinder (Left Side)

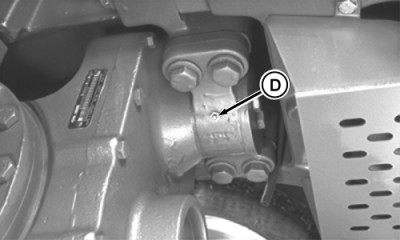

Axle Pivot
|
