Lubricating Hitch Components

SERVICE INTERVAL - DAILY OR 10 HOURS




Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section.

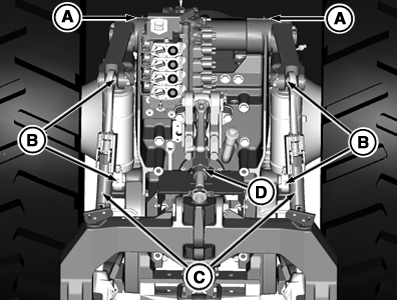

Lubricate hitch components (A-D).


A-Rockshaft
B-Lift Cylinders
C-Lift Links
D-Center Link

RXA0085963

OURX935,0000493 -19-07JAN08-1/1
