Replacing Upper Extremity Warning Light Bulb (If Equipped)

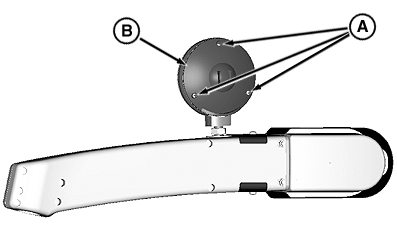

1. Remove screws (A).

2. Remove lens cover (B).

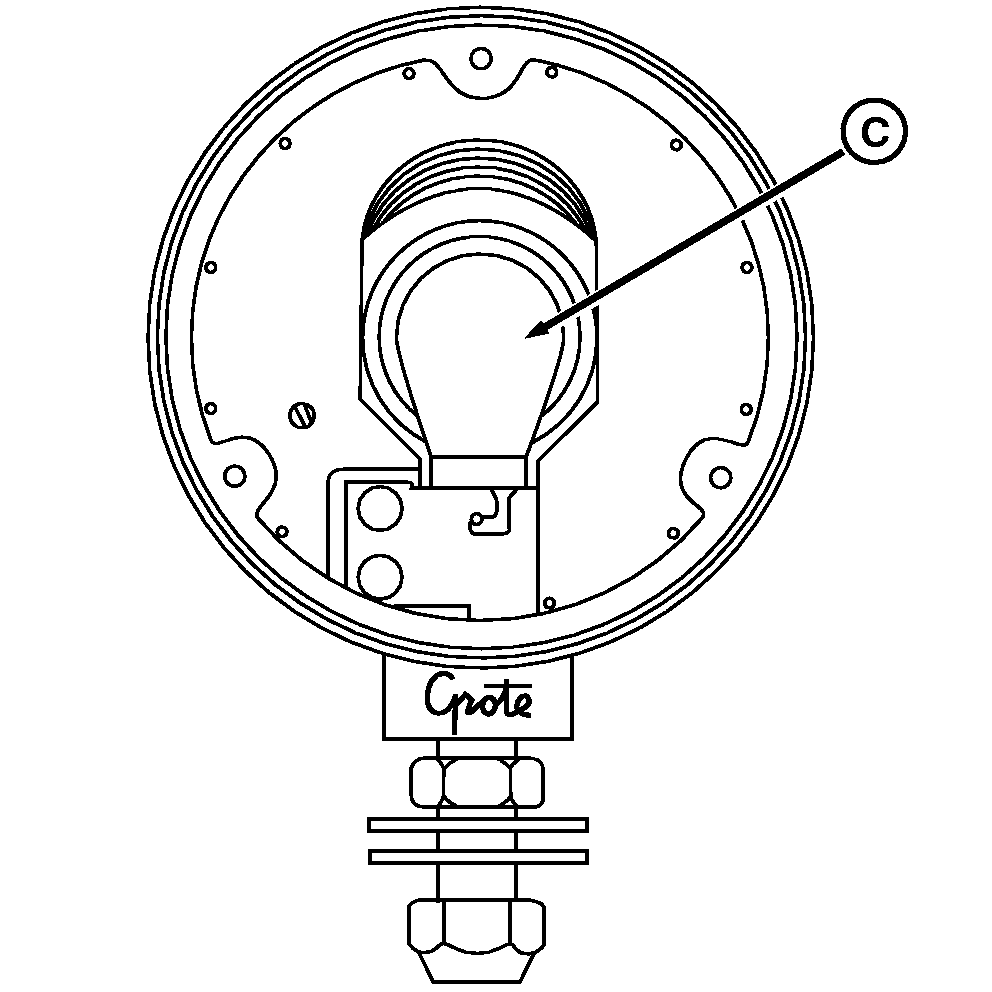

3. Push in and turn counterclockwise to remove light bulb (C).

4. Install new bulb in reverse order of removal.

RXA0083977
RXA0083976


A-Screws
B-Lens Cover
C-Light Bulb

OURX935,000049A -19-21SEP06-1/1
