Replacing Primary and Secondary Engine Air Filters

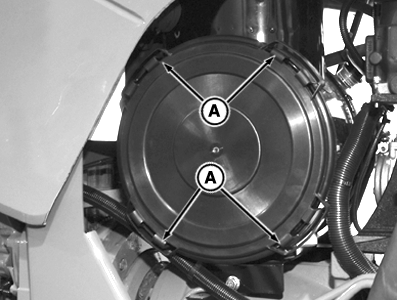

Unfasten plastic clips (A), and remove filter cover.

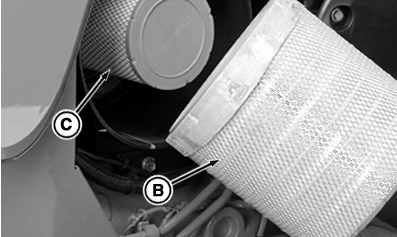

Turn and pull to remove primary filter (B).

IMPORTANT: Clean dirt from inside of canister and cover.

Do not attempt to clean secondary filter.

Replace secondary filter (C) annually or every second primary filter change.

Install new secondary filter immediately to prevent dust from entering air intake system.

Replace filter elements.

Install cover.

A-Clips
B-Primary Filter
C-Secondary Filter

OURX935,000049F -19-07JAN08-1/1
