Draining Water Separator

NOTE: When separator sensor identifies water in the fuel system, the service alert indicator will flash on the cornerpost display. An alarm will sound for five seconds and a corresponding message appears on the CommandCenter display.

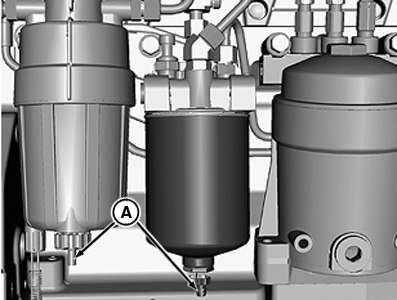

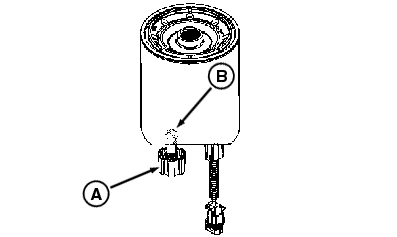

NOTE: Water in fuel collects in the bottom of the fuel filters. Loosening drain valve nut (A) causes tabs (B) to drop down allowing water to drain.

Turn drain valve nut counterclockwise all the way open to drain water.

A-Drain Valve Nut
B-Tabs

OURX935,00004A5 -19-02JAN08-1/1
