Using PTO Shield

causym CAUTION: Avoid personal injury. Put the PTO shield in correct position at all times. Do not use shield as a step.

Move main support (B) into correct position.

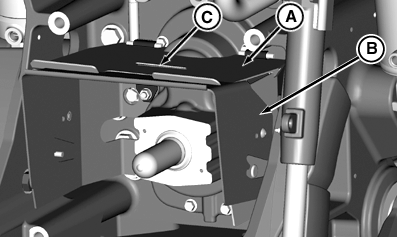

To extend shield, lift up upper support (A) and tilt main support down. Slide main support portion of shield forward and pull up to locked position (C).

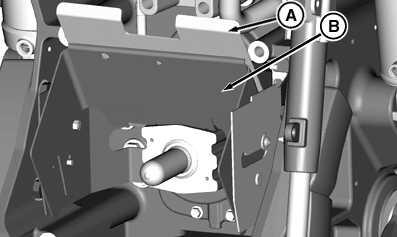

Lift main and upper supports to raised position to provide clearance while connecting implement driveline to the PTO shaft.

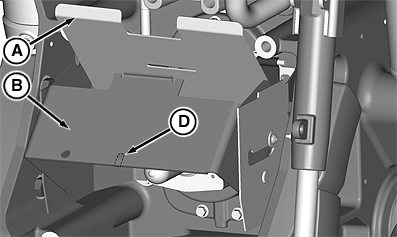

To connect an implement with an old-style tunnel shield, cut slot in the PTO shield. Cut from the edge of the main support to the small slot (D).


A-Upper Support
B-Main Support
C-Lock Position
D-Slot
