Using Secondary Hand Brake-If Equipped

NOTE: Secondary hand brake applies:

• Front brakes on tractors equipped with Independent Link Suspension

• Trailer brakes on tractors equipped with pneumatic brakes

• Restriction in shifting transmission into gear until brake is released

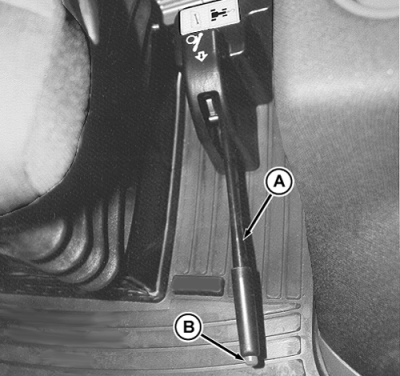

For early model tractors, pull secondary hand brake (A) upward to engage brake. To release secondary brake, push button (B) on end of brake handle and release to downward position.

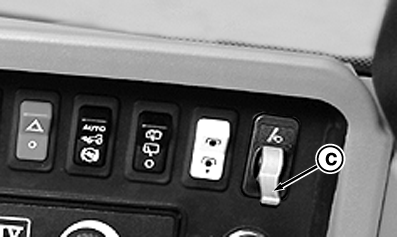

For late model tractors, hand brake switch is down, brake is off (default position) . As the lever is lifted, the secondary brake will be proportionally applied with increasing braking force. Switch will not remain in up position without being held. When released, the lever will spring return to the down position.

A-Secondary Hand Brake
B-Release Button
C-Hand Brake Switch

OURX935,00004BD -19-14MAY07-1/1
